The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier to ensure the capacitor's reliability and performance.
Yes, the DGH506Q2R7 is designed to withstand high-vibration environments. It meets the vibration test requirements of MIL-STD-202, Method 204, Condition D, which involves 10-2000 Hz frequency sweeps at 20 G peak acceleration.
The DGH506Q2R7 is designed to operate in humid environments. It meets the humidity test requirements of MIL-STD-202, Method 103, Condition B, which involves 95% relative humidity at 65°C (149°F) for 240 hours.
The ESR of the DGH506Q2R7 is not explicitly stated in the datasheet, but it can be estimated based on the capacitor's construction and materials. Typically, the ESR of a film capacitor like the DGH506Q2R7 is in the range of 10-50 mΩ.
Yes, the DGH506Q2R7 is suitable for use in DC-DC converter applications due to its low ESR, high ripple current capability, and stable capacitance over a wide temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DGH506Q2R7 Overview

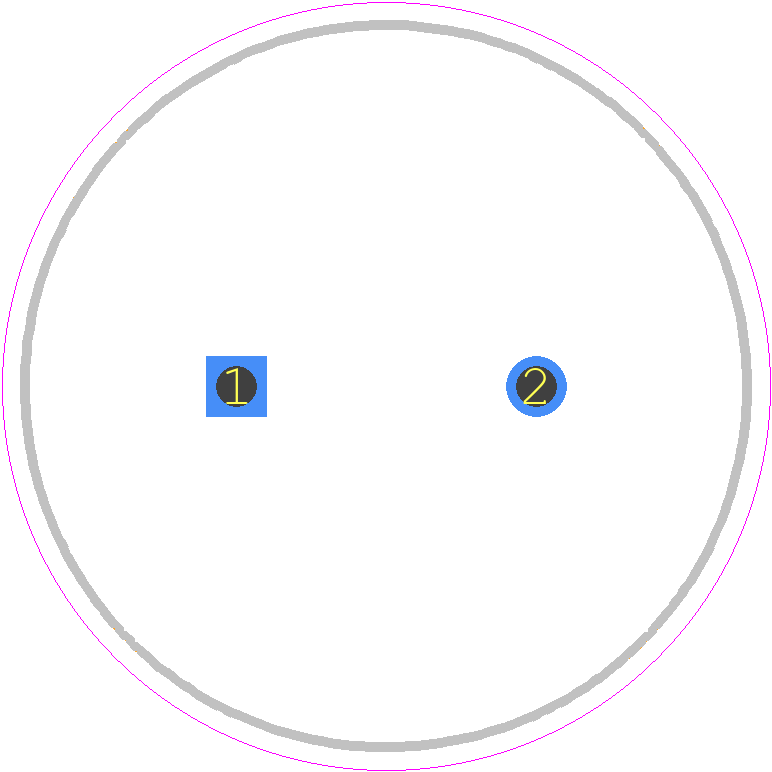

Use the download button to access the DGH506Q2R7 schematic symbol, PCB footprint, and 3D model.
