DGH706Q2R7 - Cornell Dubilier

Description: 70 F (EDLC) Supercapacitor 2.7 V Radial, Can 14mOhm @ 1kHz 1500 Hrs @ 85°C

Download DGH706Q2R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DGH706Q2R7 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

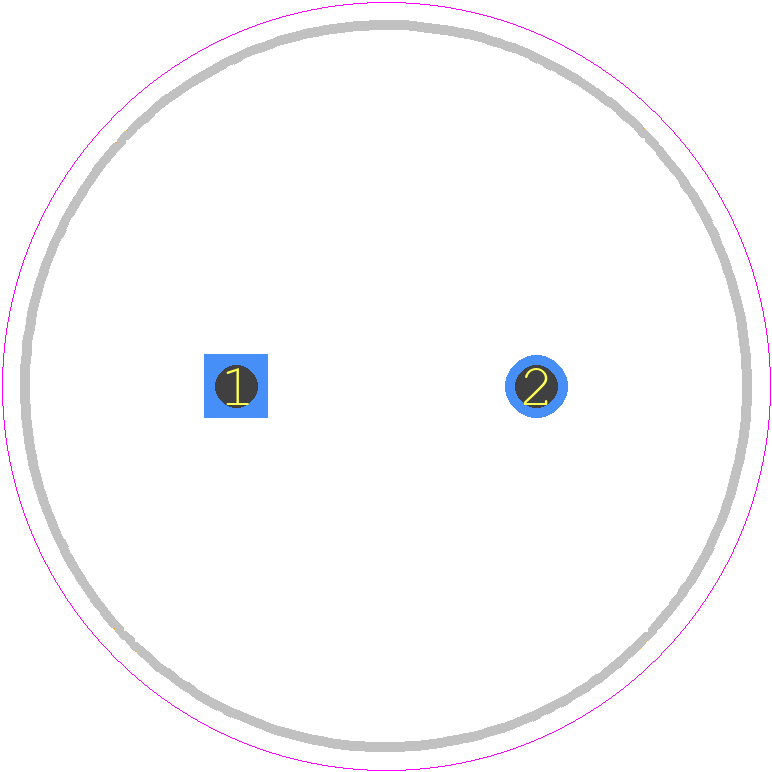

DGH706Q2R7 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 18x50
click to zoom
3D Models
DGH706Q2R7 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - 18x50
click to zoom

DGH706Q2R7 Details

  • Manufacturer Part Number:

    DGH706Q2R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Capacitance:

    70000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • JESD-609 Code:

    e3

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    30%

  • Rated (DC) Voltage (URdc):

    2.7 V

  • Reference Standard:

    UL

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

DGH706Q2R7 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DGH706Q2R7 is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the DGH706Q2R7 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which involves 10-2000 Hz frequency sweeps at 10 G acceleration.
  • The DGH706Q2R7 is designed to operate in humid environments. It meets the humidity test requirements of IEC 60068-2-78, which involves 85°C (185°F) and 85% relative humidity for 1000 hours.
  • The ESR of the DGH706Q2R7 is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mΩ based on similar capacitors from Cornell Dubilier Electronics Inc.
  • Yes, the DGH706Q2R7 is suitable for use in DC-DC converter applications due to its low ESR, high ripple current rating, and high reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DGH706Q2R7 Overview

Use the download button to access the DGH706Q2R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DGH70, or try a keyword search, such as Electric Double Layer Capacitors
