DIO706RCS8 - DIOO Microcircuits

Description: Guaranteed reset valid at VCC=1.15V  Reset threshold can be from 2.6V to 5.0V with 0.1V step  Low operating current: 52uA@5V  Reset pulse width:200ms  Independent watchdog timer, 1.6s timeout  Voltage monitor for power fail or low battery warning  Pin-to-Pin compatible with industry standard  Available in Package of SOIC-8

Download DIO706RCS8 Model

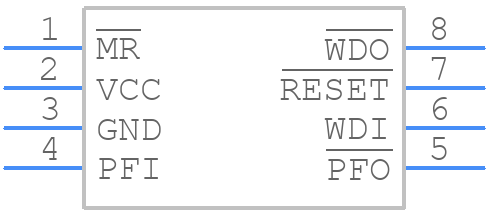

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DIO706RCS8 - DIOO Microcircuits PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8
click to zoom
3D Models
DIO706RCS8 - DIOO Microcircuits  - 3D model - Small Outline Packages - SOIC-8
click to zoom

DIO706RCS8 Details

  • Manufacturer Part Number:

    DIO706RCS8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Dioo Microcircuits Co Ltd

  • Additional Feature:

    MNL RST:Y;PW FL IO:Y;PRG RST DLY:N;WD:Y;WDO:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Supply Current-Max (Isup):

    0.105 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.15 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.63V

DIO706RCS8 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal path as short as possible. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a heat sink if necessary, and ensure good airflow around the device. Additionally, consider using a thermal interface material to improve heat transfer.
  • The recommended soldering conditions for the DIO706RCS8 are: peak temperature of 260°C, soldering time of 10-15 seconds, and a soldering iron temperature of 350-370°C. It's also recommended to use a solder with a melting point of 217-220°C.
  • To handle ESD protection during handling and assembly, it's recommended to use an ESD wrist strap or mat, handle the device by the package body only, and avoid touching the pins or leads. Additionally, use ESD-protected packaging and storage materials.
  • The recommended storage conditions for the DIO706RCS8 are: temperature range of -40°C to 125°C, humidity of 60% or less, and storage in an ESD-protected environment. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
