DIR9001PWRG4 - Texas Instruments

Description: Audio Transmitters, Receivers, Transceivers 96kHz Digital Audio Receiver

Download DIR9001PWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

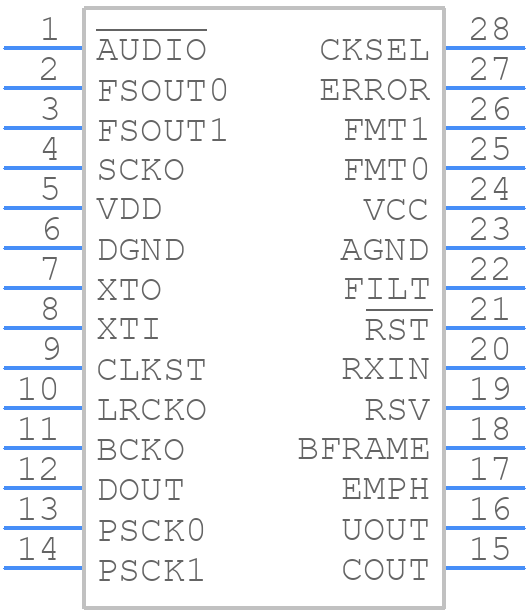

DIR9001PWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DIR9001PWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
DIR9001PWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

DIR9001PWRG4 Details

  • Manufacturer Part Number:

    DIR9001PWRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    0.65 MM PITCH, GREEN, PLASTIC, TSSOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    12.4 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DIR9001PWRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DIR9001PWRG4 evaluation module documentation, which includes a thermal pad layout and component placement guidelines to ensure optimal thermal performance.
  • The output filter design should be optimized based on the specific application requirements. TI provides a filter design tool and guidelines in the datasheet and application notes to help engineers optimize the output filter for their specific use case.
  • The DIR9001PWRG4 can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 12V to 48V for optimal performance and reliability.
  • The DIR9001PWRG4 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a detailed implementation guide and calculation formulas for setting the overcurrent threshold.
  • Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. The datasheet provides more detailed guidelines for input capacitor selection and placement.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DIR9001PWRG4 Overview

Use the download button to access the DIR9001PWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DIR90, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
