DLC/6SURKD - Kingbright

Description: Red 630nm LED Indication - Discrete 1.95V 12-DIP (0.600", 15.24mm)

Download DLC/6SURKD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

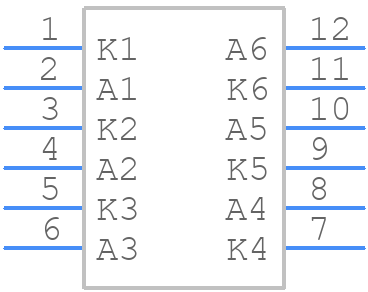

DLC/6SURKD - Kingbright - PCB symbol
click to zoom
PCB Footprints

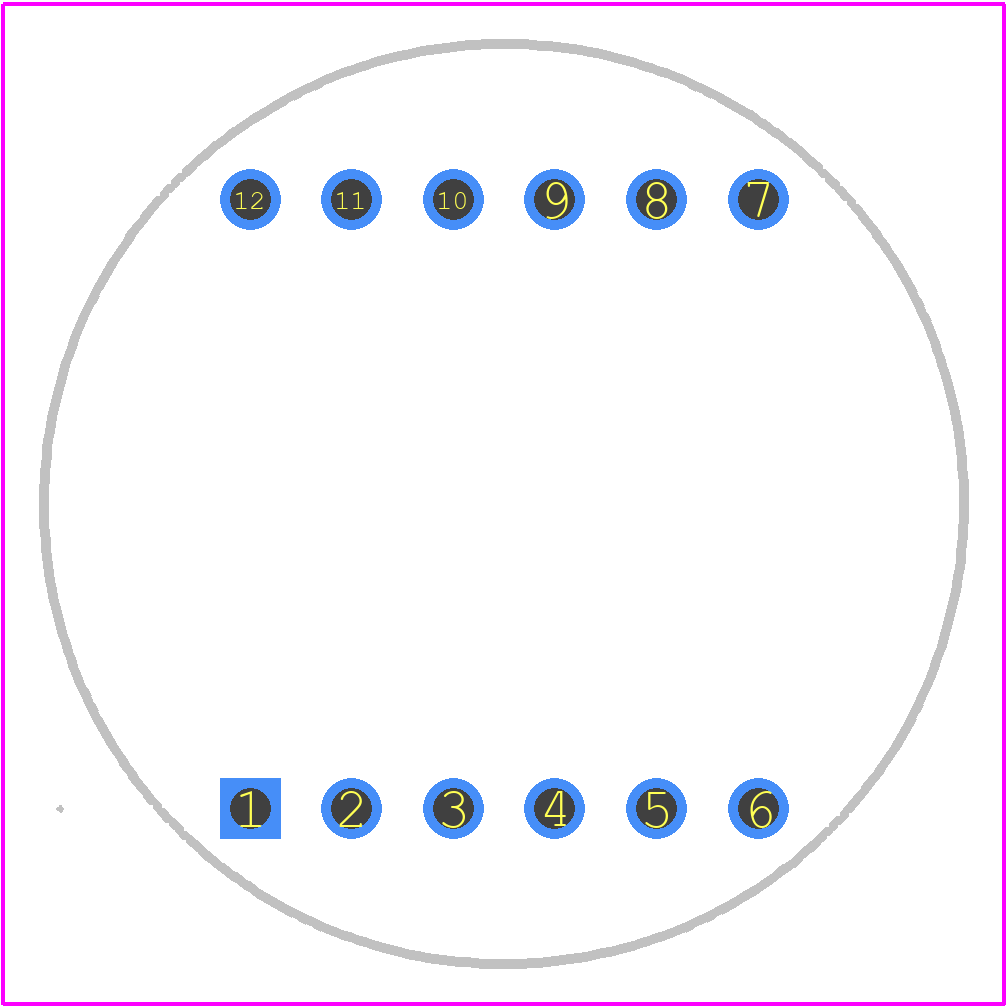

DLC/6SURKD - Kingbright PCB footprint - Other - Other - 12-DIP
click to zoom
3D Models
DLC/6SURKD - Kingbright - 3D model - Other - 12-DIP
click to zoom

DLC/6SURKD Details

  • Manufacturer Part Number:

    DLC/6SURKD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    7

  • Color:

    HYPER RED

  • Configuration:

    SEPARATE, 6 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Lens Type:

    DIFFUSED RED

  • Luminous Intensity-Min:

    0.5 cd

  • Luminous Intensity-Nom:

    1050.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    13.5 mm

  • Packing Method:

    TUBE

  • Peak Wavelength:

    645 nm

  • Reverse Voltage-Max:

    5 V

  • Shape:

    ROUND

  • Size:

    20 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    120 deg

DLC/6SURKD Frequently Asked Questions (FAQs)

  • The recommended storage temperature for DLC/6SURKD is -20°C to 30°C, with a relative humidity of 60% or less.
  • While DLC/6SURKD is suitable for indoor use, it's not recommended for outdoor applications due to its limited environmental rating (IP20). For outdoor use, consider using a more ruggedized LED component with a higher IP rating.
  • The maximum soldering temperature for DLC/6SURKD is 260°C for 3 seconds. Exceeding this temperature or time may damage the component.
  • To prevent electrostatic discharge (ESD) damage, handle DLC/6SURKD components with ESD-protective equipment, such as wrist straps, mats, or bags. Ground yourself before handling the components, and avoid touching the pins or leads.
  • The typical lifespan of DLC/6SURKD is around 50,000 hours, depending on operating conditions, such as temperature, current, and environmental factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLC/6SURKD Overview

Use the download button to access the DLC/6SURKD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLC/6, or try a keyword search, such as Visible LEDs
