DLC2/6ID - Kingbright

Description: Kingbright DLC2/6ID, Round Series 6 Red LED, 20 mm, Round Lens Through Hole Package

Download DLC2/6ID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLC2/6ID - Kingbright - PCB symbol
click to zoom
PCB Footprints

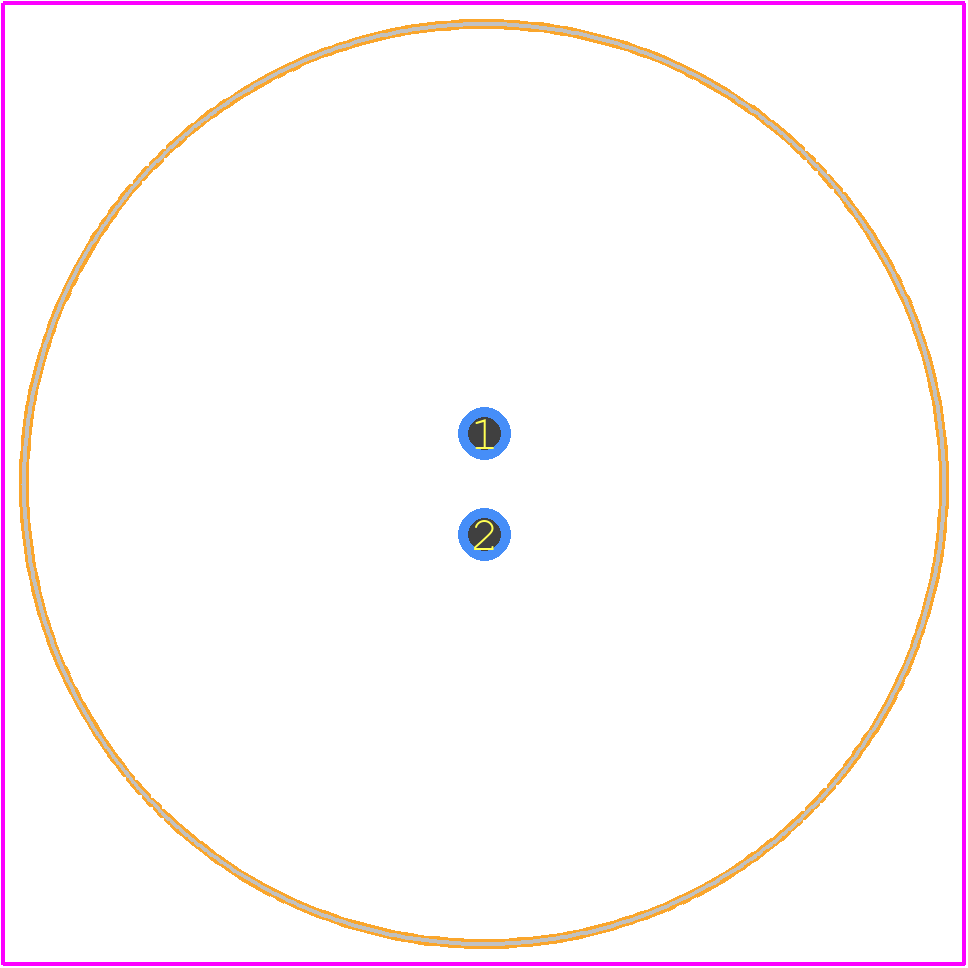

DLC2/6ID - Kingbright PCB footprint - Other - Other - DLC2/6ID-1
click to zoom
3D Models
DLC2/6ID - Kingbright - 3D model - Other - DLC2/6ID-1
click to zoom

DLC2/6ID Details

  • Manufacturer Part Number:

    DLC2/6ID

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    7

  • Color:

    HIGH EFFICIENCY RED

  • Configuration:

    COMPLEX

  • Display Height:

    20 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED DISPLAY CLUSTER

DLC2/6ID Frequently Asked Questions (FAQs)

  • The recommended storage temperature for DLC2/6ID is -20°C to 60°C, with a relative humidity of 60% or less.
  • While DLC2/6ID is suitable for indoor use, it's not recommended for outdoor applications due to its limited environmental rating. For outdoor use, consider using a more ruggedized LED component with a higher IP rating.
  • The maximum soldering temperature for DLC2/6ID is 260°C for 3 seconds. Exceeding this temperature may damage the LED or affect its performance.
  • While it's technically possible to drive DLC2/6ID with a higher current, it's not recommended as it may reduce the LED's lifespan or cause overheating. Sticking to the recommended 20mA current ensures optimal performance and reliability.
  • The typical voltage drop for DLC2/6ID is around 2.0-2.5V at a forward current of 20mA. This value may vary depending on the specific LED batch and operating conditions.
