DLP6500BFYE - Texas Instruments

Description: Display Drivers & Controllers DLP® 0.65 1080p s600 DMD 350-CPGA

Download DLP6500BFYE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLP6500BFYE - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

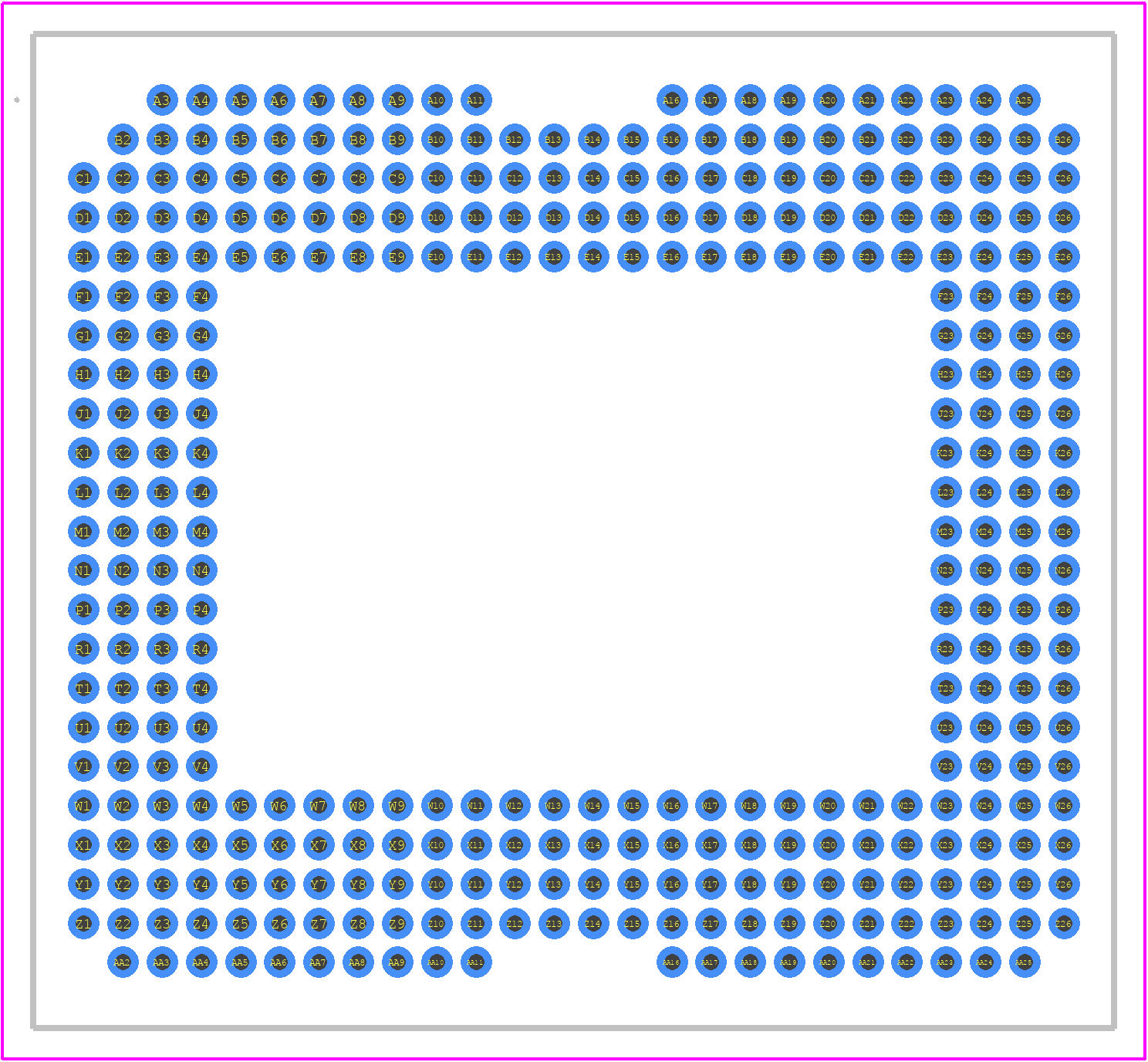

DLP6500BFYE - Texas Instruments PCB footprint - Other - Other - CPGA (FYE) | 350
click to zoom
3D Models
DLP6500BFYE - Texas Instruments - 3D model - Other - CPGA (FYE) | 350
click to zoom

DLP6500BFYE Details

  • Manufacturer Part Number:

    DLP6500BFYE

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-11-03

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    SEATED HGT-CALCULATED

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-CPGA-P350

  • JESD-609 Code:

    e4

  • Length:

    35 mm

  • Number of Functions:

    1

  • Number of Terminals:

    350

  • Operating Temperature-Max:

    90 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    SPGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, SHRINK PITCH

  • Seated Height-Max:

    4.173 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    PERPENDICULAR

  • Width:

    32.2 mm

DLP6500BFYE Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guidelines in the DLP6500BFYE User's Guide (SLUU022). It's essential to follow these guidelines to ensure proper heat dissipation and minimize electromagnetic interference (EMI).
  • TI provides a DLP6500BFYE EVM (Evaluation Module) and a comprehensive user's guide that includes guidelines for optimizing performance. Additionally, TI's DLP Design Note DN023 provides tips for optimizing the DLP6500BFYE's performance for various applications.
  • The critical timing parameters for the DLP6500BFYE include the pixel clock, horizontal sync, and vertical sync. Ensure proper synchronization by following the timing diagrams and guidelines provided in the DLP6500BFYE datasheet and user's guide.
  • The DLP6500BFYE uses a high-speed digital interface that requires careful signal routing and termination. Follow the guidelines in the DLP6500BFYE datasheet and user's guide for signal routing, termination, and impedance matching to ensure reliable data transfer.
  • The DLP6500BFYE requires a specific power sequencing and voltage requirements, which are outlined in the datasheet and user's guide. Ensure that the power supply meets the recommended voltage and current requirements to prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLP6500BFYE Overview

Use the download button to access the DLP6500BFYE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLP65, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
