DLPA1000YFFR - Texas Instruments

Description: PMIC/LED Driver for DLP2000 (0.2 nHD) DMD

Download DLPA1000YFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

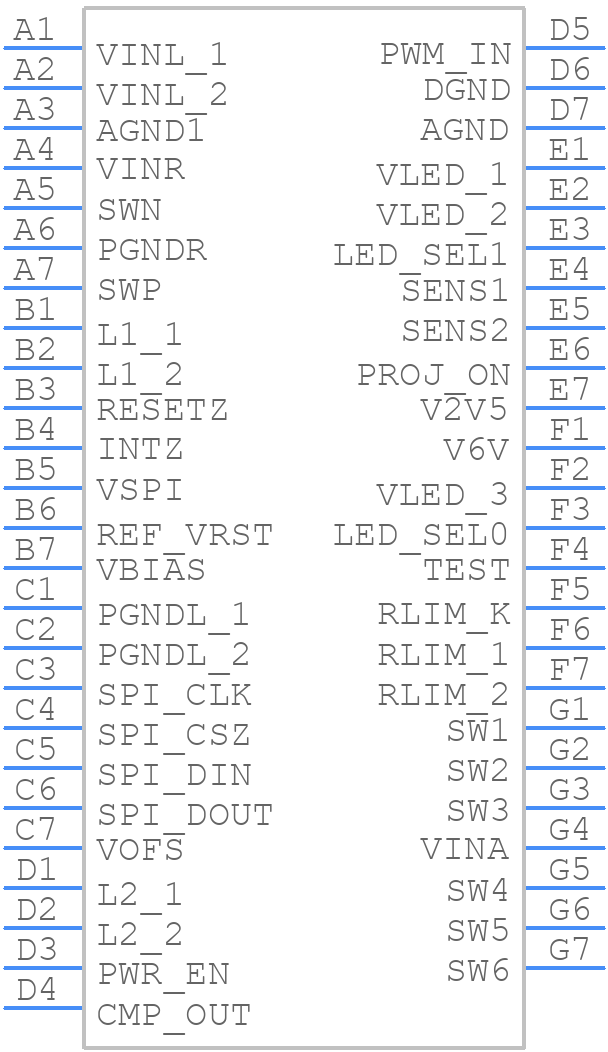

Symbol
DLPA1000YFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DLPA1000YFFR - Texas Instruments PCB footprint - BGA - BGA - DLPA1000YFFT
click to zoom
3D Models
DLPA1000YFFR - Texas Instruments - 3D model - BGA - DLPA1000YFFT
click to zoom

DLPA1000YFFR Details

  • Manufacturer Part Number:

    DLPA1000YFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-06-04

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO AVAILABLE 2.7V TO 6V SUPPLY NOM

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PBGA-B49

  • JESD-609 Code:

    e1

  • Length:

    3.154 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.958 mm
