DLPC3435CZEZ - Texas Instruments

Description: DLP® Display Controller for DLP2010 (0.2 WVGA) DMD

Download DLPC3435CZEZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLPC3435CZEZ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

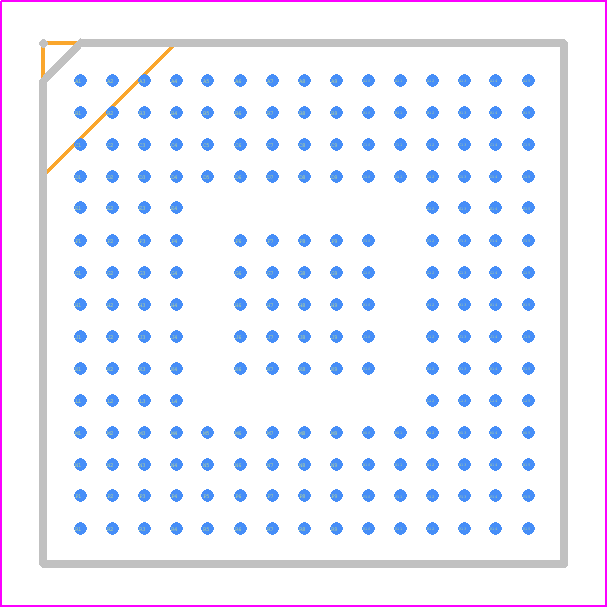

DLPC3435CZEZ - Texas Instruments PCB footprint - BGA - BGA - ZEZ0201A
click to zoom
3D Models
DLPC3435CZEZ - Texas Instruments - 3D model - BGA - ZEZ0201A
click to zoom

DLPC3435CZEZ Details

  • Manufacturer Part Number:

    DLPC3435CZEZ

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-02-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bit Size:

    24

  • Bus Compatibility:

    I2C, SPI

  • Clock Frequency-Max:

    24.002 MHz

  • Display Configuration:

    854 X 480 PIXELS

  • JESD-30 Code:

    S-PBGA-B201

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    201

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    NFBGA

  • Package Equivalence Code:

    BGA201,15X15,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.155 V

  • Supply Voltage-Min:

    1.045 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    DISPLAY CONTROLLER, DLP

DLPC3435CZEZ Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guidelines in the DLPC3435CZEZ datasheet and application notes. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • To optimize the DLPC3435CZEZ for low power consumption, use the power-saving features such as dynamic voltage and frequency scaling, clock gating, and power gating. Additionally, optimize the firmware and software to minimize power consumption during idle periods.
  • The DLPC3435CZEZ supports a maximum clock frequency of 1.2 GHz. However, the actual clock frequency may vary depending on the specific application and system design.
  • Texas Instruments provides a secure boot and firmware encryption mechanism for the DLPC3435CZEZ. Implementing secure boot involves using the device's built-in security features, such as the Secure Boot Loader and encryption algorithms like AES and SHA. Consult the DLPC3435CZEZ security documentation and application notes for detailed implementation guidelines.
  • The recommended operating conditions for the DLPC3435CZEZ include an operating temperature range of -40°C to 85°C, a supply voltage of 1.2V to 1.35V, and a maximum junction temperature of 125°C. Ensure that your system design meets these conditions to ensure reliable operation.
