DLPC3435ZEZ - Texas Instruments

Description: Display Drivers & Controllers DLP Disply Controllr for DLP2010

Download DLPC3435ZEZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLPC3435ZEZ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

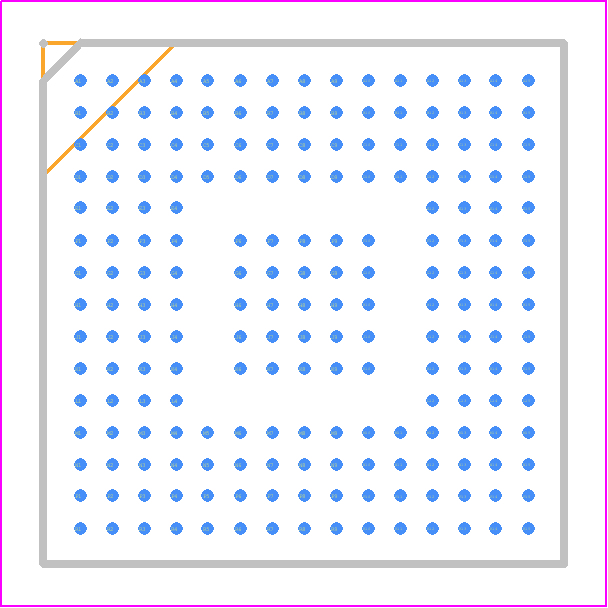

DLPC3435ZEZ - Texas Instruments PCB footprint - BGA - BGA - ZEZ0201A
click to zoom
3D Models
DLPC3435ZEZ - Texas Instruments - 3D model - BGA - ZEZ0201A
click to zoom

DLPC3435ZEZ Details

  • Manufacturer Part Number:

    DLPC3435ZEZ

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    NFBGA-201

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Bit Size:

    24

  • Bus Compatibility:

    I2C, SPI

  • Clock Frequency-Max:

    24.002 MHz

  • JESD-30 Code:

    S-PBGA-B201

  • Length:

    13 mm

  • Number of Terminals:

    201

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA201,15X15,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.155 V

  • Supply Voltage-Min:

    1.045 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    DISPLAY CONTROLLER, DLP

DLPC3435ZEZ Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guide in the DLPC3435ZEZ Evaluation Module User's Guide (SLAU622). It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • The DLPC3435ZEZ can be configured using the DLPC3435ZEZ Programmer's Guide (SLAU623) and the DLPC3435ZEZ API Guide (SLAU624). These resources provide detailed information on how to program the device for specific display resolutions and refresh rates.
  • The DLPC3435ZEZ has an operating temperature range of -40°C to 85°C. However, it's essential to ensure proper thermal management to maintain a junction temperature below 125°C to ensure reliable operation.
  • Yes, the DLPC3435ZEZ can be used with non-TI microcontrollers. However, you may need to develop custom firmware and software to interface with the DLPC3435ZEZ. TI provides example code and APIs for popular microcontrollers, but you may need to adapt them for your specific use case.
  • The power consumption of the DLPC3435ZEZ varies depending on the operating mode and display configuration. The typical power consumption is around 1.5W, but it can be as low as 100mW in low-power modes. Refer to the datasheet for detailed power consumption information.
