DLPR910AYVA - Texas Instruments

Description: TEXAS INSTRUMENTS - DLPR910AYVA - CONFIGURATION PROM, 33MBPS, DSBGA-48

Download DLPR910AYVA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

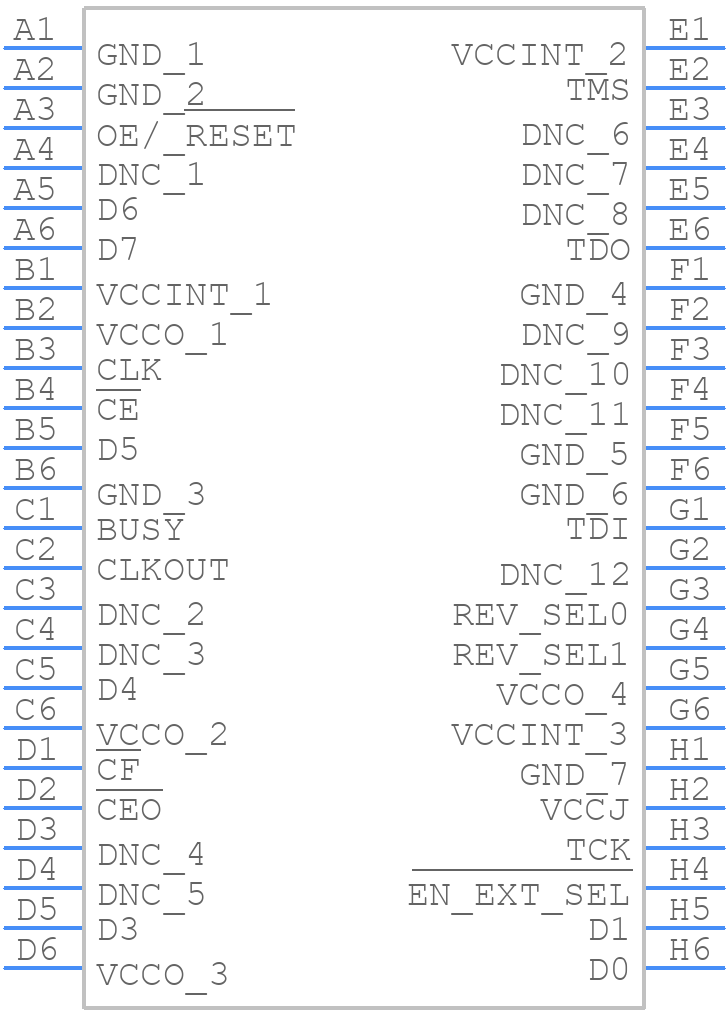

DLPR910AYVA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DLPR910AYVA - Texas Instruments PCB footprint - BGA - BGA - DLPR910AYVA
click to zoom
3D Models
DLPR910AYVA - Texas Instruments - 3D model - BGA - DLPR910AYVA
click to zoom

DLPR910AYVA Details

  • Manufacturer Part Number:

    DLPR910AYVA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DSBGA-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PBGA-B48

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA48,6X8,31

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

DLPR910AYVA Frequently Asked Questions (FAQs)

  • TI recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable start-up and shutdown, TI recommends a soft-start circuit to limit the inrush current and a shutdown circuit to discharge the output capacitor. A 1-2 ms soft-start time is recommended.
  • The DLPR910AYVA can drive up to 1.5 A of LED current, but the actual current limit depends on the specific application, PCB design, and thermal management.
  • To compensate for LED voltage variations, TI recommends using an external resistor divider network to sense the LED voltage and adjust the output current accordingly.
  • TI recommends a 10-22 μF X5R or X7R ceramic capacitor with a voltage rating of 25 V or higher, placed as close as possible to the VIN pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLPR910AYVA Overview

Use the download button to access the DLPR910AYVA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLPR9, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
