DM505LRBABF - Texas Instruments

Description: Video ICs SoC for Vision Analytics 15mm Package 367-FCBGA -40 to 125

Download DM505LRBABF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DM505LRBABF - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

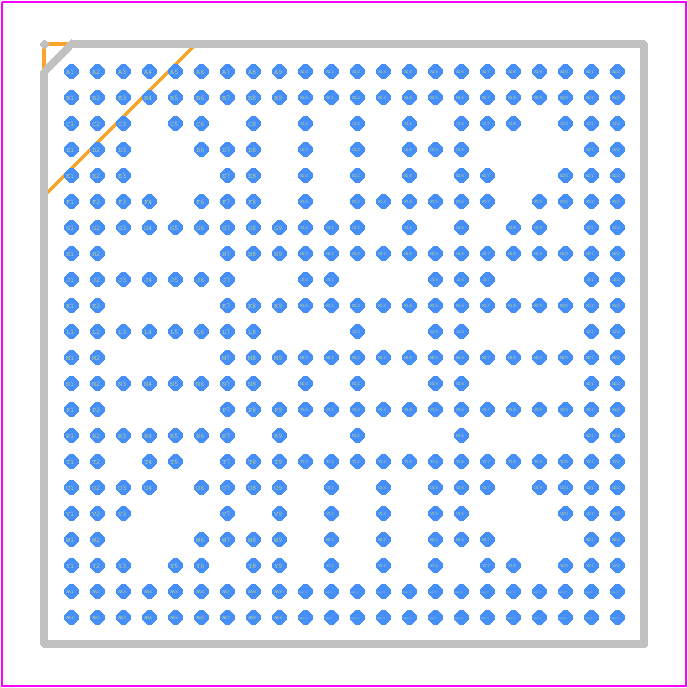

DM505LRBABF - Texas Instruments PCB footprint - BGA - BGA - ABF0367A
click to zoom
3D Models
DM505LRBABF - Texas Instruments - 3D model - BGA - ABF0367A
click to zoom

DM505LRBABF Details

  • Manufacturer Part Number:

    DM505LRBABF

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.A.1

  • HTS Code:

    8542.31.00.75

  • Date Of Intro:

    2017-07-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C; SPI; UART

  • Clock Frequency-Max:

    32 MHz

  • External Data Bus Width:

    32

  • JESD-30 Code:

    S-PBGA-B367

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    367

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    250

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.82 mm

  • Supply Voltage-Max:

    1.11 V

  • Supply Voltage-Min:

    1.02 V

  • Supply Voltage-Nom:

    1.06 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

DM505LRBABF Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DM505LRBABF evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The DM505LRBABF has a programmable input voltage range. You can configure it using the I2C interface and the TI-provided software development kit (SDK). The SDK includes APIs and documentation to help you set the input voltage range and other parameters.
  • The maximum current rating for the output pins is 10mA per pin. However, it's recommended to limit the current to 5mA per pin to ensure reliable operation and prevent overheating.
  • The DM505LRBABF has built-in OVP and UVP features. You can configure the threshold voltages using the I2C interface and the TI-provided SDK. Additionally, you can use external resistors and capacitors to fine-tune the OVP and UVP settings.
  • The recommended operating temperature range for the DM505LRBABF is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DM505LRBABF Overview

Use the download button to access the DM505LRBABF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DM505, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
