Texas Instruments provides a recommended PCB layout in the DM505LRBABFR datasheet, but it's essential to follow good thermal design practices, such as using thermal vias, thermal pads, and keeping the PCB layer stack-up symmetrical to minimize thermal resistance.
To ensure reliable operation in high-temperature environments, it's crucial to follow the recommended operating temperature range, use a suitable thermal interface material, and implement proper thermal management, such as heat sinks or fans, to keep the device within its specified temperature range.
The DM505LRBABFR is not hermetically sealed, so it's essential to take precautions when operating in high-humidity environments. Apply a conformal coating, use a moisture-resistant PCB material, and ensure good PCB cleanliness to minimize the risk of moisture-related failures.
To troubleshoot issues with the built-in voltage regulator, check the input voltage, output voltage, and current consumption. Verify that the input voltage is within the specified range, and the output voltage is within the desired range. Also, ensure that the device is not overheating, and the output current is within the specified limit.
When using the DM505LRBABFR in a system with multiple power domains, ensure that each power domain is properly isolated, and the device is powered from a stable, low-noise power source. Use proper power sequencing, and ensure that the device is powered up and down correctly to avoid damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DM505LRBABFR Overview

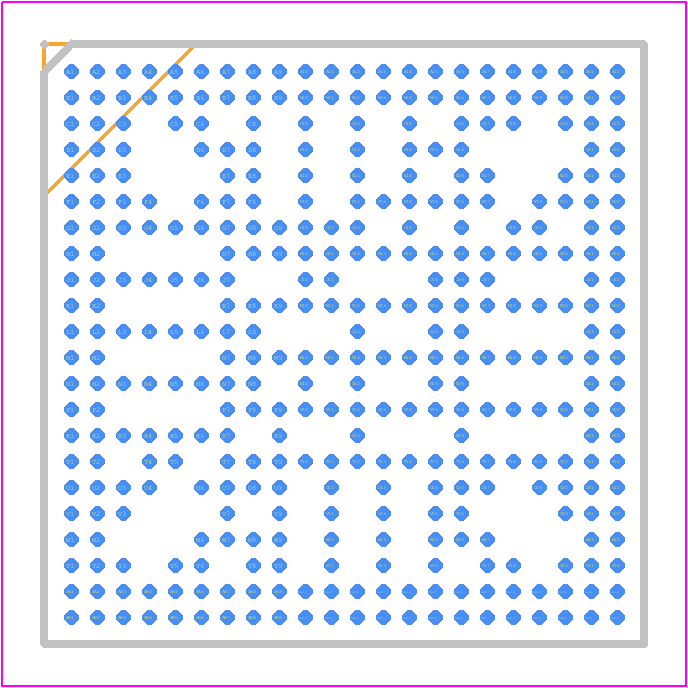

Use the download button to access the DM505LRBABFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DM505,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
