HALOGEN FREE AND ROHS COMPLIANT, MINI6-G4-B, SC-74, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Collector Current-Max (IC):
0.5 A
Collector-Emitter Voltage-Max:
10 V
Configuration:
SEPARATE, 2 ELEMENTS
DC Current Gain-Min (hFE):
60
JESD-30 Code:
R-PDSO-G6
Number of Elements:
2
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
PNP
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
AMPLIFIER
Transistor Element Material:
SILICON
Transition Frequency-Nom (fT):
250 MHz
DMA204A00R Frequently Asked Questions (FAQs)
Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The DMA204A00R has a high power dissipation, so it's crucial to implement proper thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the component. Panasonic provides thermal resistance and junction-to-ambient thermal resistance values in the datasheet to help with thermal design.
The DMA204A00R has an operating temperature range of -40°C to 150°C, but it's essential to note that the component's performance and reliability may degrade at extreme temperatures. It's recommended to operate the component within a temperature range of -20°C to 125°C for optimal performance.
To ensure the reliability and longevity of the DMA204A00R, it's essential to follow proper handling, storage, and soldering procedures. Additionally, operating the component within the recommended specifications, providing adequate thermal management, and using a clean and dry environment can help extend its lifespan.
The DMA204A00R is an electrostatic discharge (ESD) sensitive component. It's essential to handle the component with ESD-protective equipment, such as wrist straps, mats, and bags, to prevent damage. Panasonic recommends following the ESD Association's guidelines for ESD control and handling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMA204A00R Overview

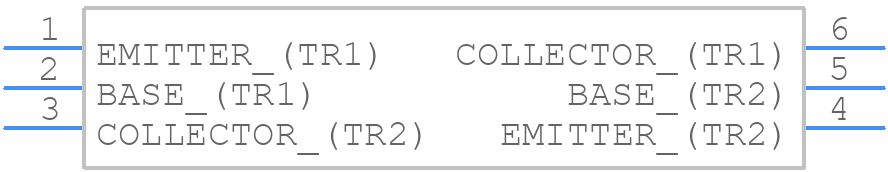

Use the download button to access the DMA204A00R schematic symbol, PCB footprint, and 3D model.
