HALOGEN FREE AND ROHS COMPLIANT, SMINI6-F3-B, SC-113DB, 5 PIN
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS
DC Current Gain-Min (hFE):
210
JESD-30 Code:
R-PDSO-F6
Number of Elements:
2
Number of Terminals:
6
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
PNP
Power Dissipation-Max (Abs):
0.3 W
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
AMPLIFIER
Transistor Element Material:
SILICON
Transition Frequency-Nom (fT):
150 MHz
DMA506010R Frequently Asked Questions (FAQs)
A good PCB layout for the DMA506010R involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 125°C) and consider the device's power dissipation. Proper thermal management, such as using a heat sink or thermal interface material, can help reduce the junction temperature and prevent thermal runaway.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V or less to ensure reliable operation and prevent damage to the device.
Yes, the DMA506010R can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed and decoupled to prevent noise and oscillations. Additionally, the device's output should be filtered to prevent high-frequency noise from affecting the system.
To troubleshoot issues with the DMA506010R, start by verifying the input voltage, output load, and PCB layout. Check for proper decoupling, bypassing, and filtering. Use an oscilloscope to measure the output voltage and current, and look for signs of oscillations or noise. Consult the datasheet and application notes for guidance on troubleshooting and optimization.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMA506010R Overview

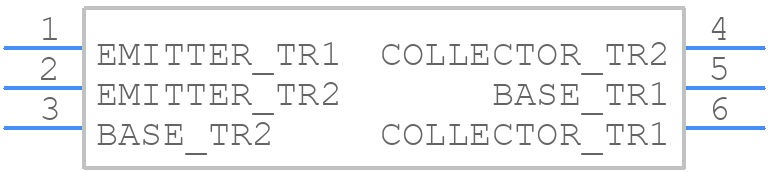

Use the download button to access the DMA506010R schematic symbol, PCB footprint, and 3D model.
