DMA5610H0R - Panasonic

Description: DMA5610H0R, Dual Digital Transistor, PNP -100 mA -50 V 2.2 kΩ, Ratio Of 0.22, Common Emitter, 5-Pin SMini5 F3 B

Download DMA5610H0R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

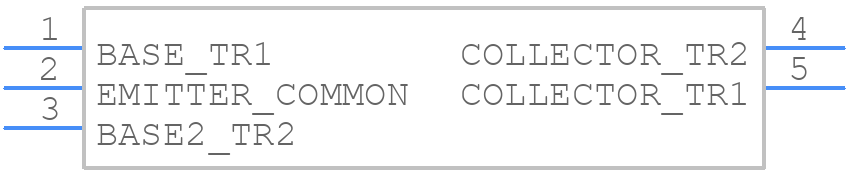

DMA5610H0R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMA5610H0R - Panasonic PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SMini5-F3-B
click to zoom
3D Models
DMA5610H0R - Panasonic - 3D model - SO Transistor Flat Lead - SMini5-F3-B
click to zoom

DMA5610H0R Details

  • Manufacturer Part Number:

    DMA5610H0R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SMINI5-F3-B, SC-113CB, 5 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO 4.55

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    30

  • JESD-30 Code:

    R-PDSO-F5

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    PNP

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMA5610H0R Frequently Asked Questions (FAQs)

  • Panasonic recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Apply a conformal coating to the module, and ensure the PCB is designed with humidity-resistant components and a moisture-proof enclosure.
  • While the datasheet specifies a recommended input voltage range, Panasonic recommends keeping the voltage deviation within ±10% to ensure reliable operation.
  • Yes, but ensure the battery voltage is within the recommended input voltage range, and consider adding a voltage regulator to maintain a stable input voltage.
  • Check the input voltage, output load, and PCB layout for any issues. Use an oscilloscope to measure the output voltage and verify it meets the datasheet specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMA5610H0R Overview

Use the download button to access the DMA5610H0R schematic symbol, PCB footprint, and 3D model.
