HALOGEN FREE AND ROHS COMPLIANT, MINI5-G3-B, MO-178, SC-74A, 5 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
COMMON BASE, 2 ELEMENTS
DC Current Gain-Min (hFE):
210
JEDEC-95 Code:
MO-178AA
JESD-30 Code:
R-PDSO-G5
Number of Elements:
2
Number of Terminals:
5
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
AMPLIFIER
Transistor Element Material:
SILICON
Transition Frequency-Nom (fT):
150 MHz
DMC202010R Frequently Asked Questions (FAQs)
Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The DMC202010R has a high power density, so thermal management is crucial. Use a heat sink, thermal interface material, and ensure good airflow around the component. Follow Panasonic's thermal design guidelines and consider using thermal simulation tools to optimize your design.
While the datasheet specifies a maximum operating temperature of 125°C, it's essential to consider the derating curves and thermal management to ensure reliable operation. Consult Panasonic's application notes for more information on temperature derating.
Follow Panasonic's recommended operating conditions, handling, and storage guidelines. Ensure proper soldering and assembly, and consider using conformal coating and potting compounds to protect the component from environmental factors.
The DMC202010R is sensitive to electrostatic discharge (ESD). Follow proper ESD handling and protection procedures, such as using ESD-safe workstations, wrist straps, and packaging materials, to prevent damage during handling and assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC202010R Overview

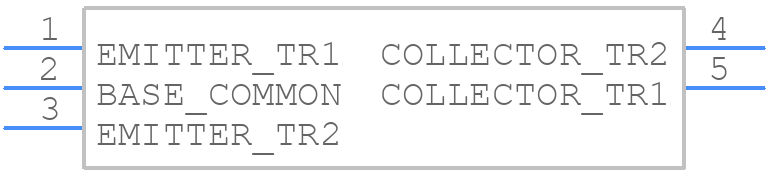

Use the download button to access the DMC202010R schematic symbol, PCB footprint, and 3D model.
