HALOGEN FREE AND ROHS COMPLIANT, MINI5-G3-B, MO-178, SC-74A, 5 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Additional Feature:
BUILT IN BIAS RESISTOR RATIO IS 1
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
60
JEDEC-95 Code:
MO-178AA
JESD-30 Code:
R-PDSO-G5
JESD-609 Code:
e6
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
5
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
NPN
Surface Mount:
YES
Terminal Finish:
TIN BISMUTH
Terminal Form:
GULL WING
Terminal Position:
DUAL
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMC261020R Frequently Asked Questions (FAQs)
Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The DMC261020R has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow Panasonic's thermal design guidelines to keep the junction temperature within the recommended range.
The derating curve is not explicitly provided in the datasheet. However, Panasonic's application notes and design guides provide guidance on derating the device based on ambient temperature, which is essential for ensuring reliable operation.
While the DMC261020R is a robust device, it's essential to evaluate its suitability for high-vibration environments. Panasonic provides guidelines for vibration testing and recommends following industry standards like IEC 60068-2-6 to ensure the device's reliability.
Panasonic provides troubleshooting guides and application notes that cover common issues and their solutions. Additionally, it's essential to follow proper debugging techniques, such as checking the device's operating conditions, signal integrity, and power supply quality.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC261020R Overview

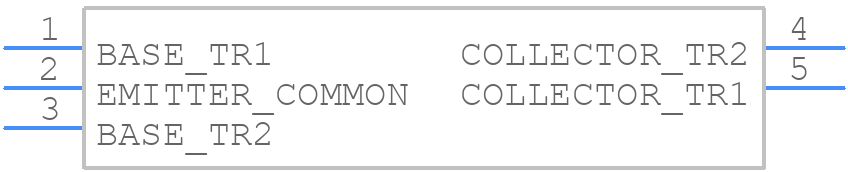

Use the download button to access the DMC261020R schematic symbol, PCB footprint, and 3D model.
