HALOGEN FREE AND ROHS COMPLIANT, MINI5-G3-B, MO-178, SC-74A, 5 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Additional Feature:
BUILT IN BIAS RESISTOR RATIO IS 1
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
80
JEDEC-95 Code:
MO-178AA
JESD-30 Code:
R-PDSO-G5
Number of Elements:
2
Number of Terminals:
5
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMC261030R Frequently Asked Questions (FAQs)
The recommended land pattern for the DMC261030R can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal soldering and reliability.
The DMC261030R is a moisture-sensitive device, and it's essential to handle it according to the manufacturer's recommendations. This includes storing the components in a dry environment, using a dry pack or desiccant, and following the recommended baking procedure before reflow soldering.
The maximum reflow temperature for the DMC261030R is typically specified as 260°C, but it's essential to check the manufacturer's recommended reflow profile to ensure that the component is not exposed to excessive temperatures, which can cause damage or degradation.
The DMC261030R is designed to operate in a variety of environments, but it's essential to evaluate its suitability for high-vibration applications. Panasonic Electronic Components may provide additional information on the component's vibration resistance, or you may need to perform your own testing and validation to ensure its reliability in such environments.
Troubleshooting issues with the DMC261030R typically involves a combination of visual inspection, electrical testing, and analysis of the application circuit. It's essential to consult the datasheet, application notes, and manufacturer's support resources to identify the root cause of the issue and implement corrective actions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC261030R Overview

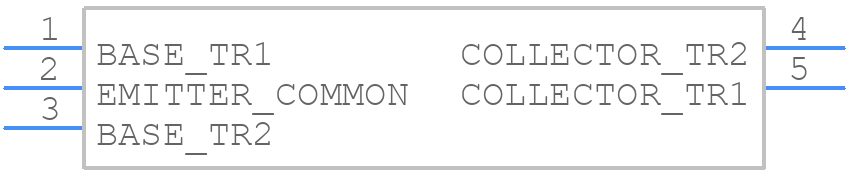

Use the download button to access the DMC261030R schematic symbol, PCB footprint, and 3D model.
