DMC261040R - Panasonic

Description: DMC261040R, Dual Digital Transistor, NPN 100 MA 50 V 10 kΩ, Ratio Of 0.21, Common Emitter, 5-Pin Mini5 G3 B

Download DMC261040R Model

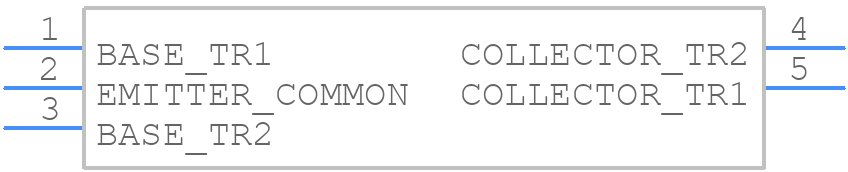

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMC261040R - Panasonic PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - Mini5-G3-B
click to zoom
3D Models
DMC261040R - Panasonic  - 3D model - SOT23 (5-Pin) - Mini5-G3-B
click to zoom

DMC261040R Details

  • Manufacturer Part Number:

    DMC261040R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINI5-G3-B, MO-178, SC-74A, 5 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO IS 4.7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JEDEC-95 Code:

    MO-178AA

  • JESD-30 Code:

    R-PDSO-G5

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMC261040R Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DMC261040R can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal issues.
  • The DMC261040R has a high power density, so thermal management is crucial. Ensure good airflow around the component, and consider using a heat sink or thermal interface material to reduce the thermal resistance. The datasheet provides thermal resistance values to help with thermal design.
  • The maximum operating temperature range for the DMC261040R is -40°C to 150°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's essential to ensure the device operates within a safe temperature range to maintain its performance and lifespan.
  • To ensure the reliability of the DMC261040R in high-vibration environments, follow proper mounting and soldering techniques. Use a robust PCB design, and consider using underfill or potting compounds to enhance the component's mechanical stability. Additionally, perform thorough vibration testing to validate the design.
  • The DMC261040R is a sensitive component and requires proper ESD protection during handling, storage, and assembly. Follow standard ESD protection procedures, such as using ESD-safe materials, wrist straps, and ionizers to minimize the risk of ESD damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMC261040R Overview

Use the download button to access the DMC261040R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMC26, or try a keyword search, such as Small Signal Bipolar Transistors
