HALOGEN FREE AND ROHS COMPLIANT, MINI6-G4-B, SC-74, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
160
JESD-30 Code:
R-PDSO-G6
Number of Elements:
2
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMC264000R Frequently Asked Questions (FAQs)
Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The DMC264000R has a high power density, so thermal management is crucial. Use a heat sink, thermal interface material, and ensure good airflow around the component. Follow Panasonic's thermal design guidelines and consider using thermal simulation tools to optimize your design.
The derating curve is not explicitly provided in the datasheet, but it can be obtained from Panasonic's support team or application notes. The derating curve shows the reduction in power rating as the ambient temperature increases. You should consider this curve when designing your system to ensure the component operates within its safe operating area.
While the DMC264000R is a robust component, it's essential to evaluate its suitability for high-vibration or high-shock environments. Panasonic provides guidelines for vibration and shock testing, and you should consult with their support team or a reliability expert to ensure the component meets your specific requirements.
Follow Panasonic's recommended design guidelines, ensure proper thermal management, and use a robust PCB design. Additionally, consider implementing failure detection and protection mechanisms, such as overcurrent protection, overvoltage protection, and thermal monitoring.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC264000R Overview

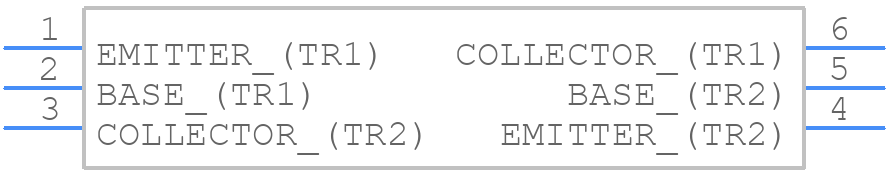

Use the download button to access the DMC264000R schematic symbol, PCB footprint, and 3D model.
