DMC2640F0R - Panasonic

Description: DMC2640F0R, Dual Digital Transistor, NPN 100 MA 50 V 4.7 kΩ, Ratio Of 0.47, Common Base, 6-Pin Mini6 G4 B

Download DMC2640F0R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

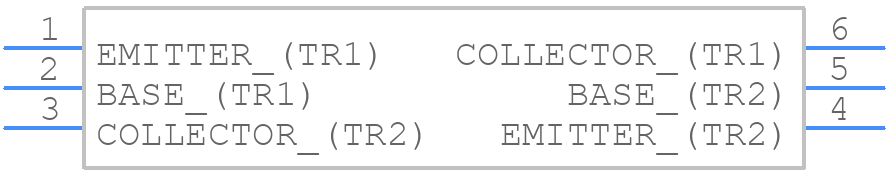

Symbol
DMC2640F0R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMC2640F0R - Panasonic PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - Mini6-G4-B
click to zoom
3D Models
DMC2640F0R - Panasonic - 3D model - SOT23 (6-Pin) - Mini6-G4-B
click to zoom

DMC2640F0R Details

  • Manufacturer Part Number:

    DMC2640F0R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINI6-G4-B, SC-74, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO IS 2.13

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    30

  • JESD-30 Code:

    R-PDSO-G6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMC2640F0R Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DMC2640F0R can be found in the Panasonic Electronic Components' recommended footprint document or in the IPC-7351 standard.
  • The DMC2640F0R has a thermal pad on the bottom, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer.
  • The maximum operating temperature range for the DMC2640F0R is -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
  • Yes, the DMC2640F0R is designed to withstand vibrations up to 10G, but it's recommended to follow proper mounting and soldering procedures to ensure reliability in high-vibration environments.
  • To ensure reliability in humid environments, it's recommended to follow proper moisture-sensitive device handling procedures, use a moisture barrier coating, and ensure the PCB is designed with humidity protection in mind.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMC2640F0R Overview

Use the download button to access the DMC2640F0R schematic symbol, PCB footprint, and 3D model.
