DMC506010R - Panasonic

Description: DMC506010R, Dual Dual Bipolar Transistor, NPN 100 mA 50 V HFE:210 150 MHz Power, 6-Pin SMini6 F3 B

Download DMC506010R Model

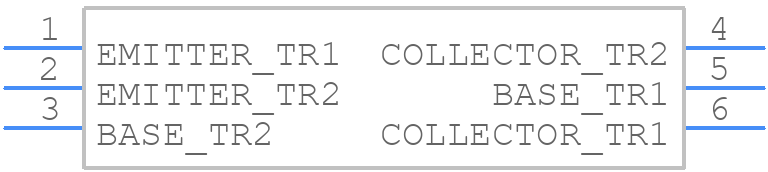

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMC506010R - Panasonic PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SMini6-F3-B
click to zoom
3D Models
DMC506010R - Panasonic  - 3D model - SO Transistor Flat Lead - SMini6-F3-B
click to zoom

DMC506010R Details

  • Manufacturer Part Number:

    DMC506010R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SMINI6-F3-B, SC-113DB, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    210

  • JESD-30 Code:

    R-PDSO-F6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    0.15 W

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    150 MHz

DMC506010R Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DMC506010R can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support.
  • The DMC506010R has a thermal resistance of 10°C/W, and it is recommended to use a thermal pad or a heat sink to dissipate heat. The device should be mounted on a PCB with a thermal via to improve heat dissipation.
  • The maximum operating temperature range for the DMC506010R is -40°C to 125°C, but it is recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • The DMC506010R is designed to withstand vibrations up to 10G, but it is recommended to use additional mechanical support or mounting methods to ensure the device remains securely attached to the PCB in high-vibration environments.
  • To ensure the reliability of the DMC506010R in high-humidity environments, it is recommended to use a conformal coating or a moisture-resistant coating on the PCB, and to follow proper storage and handling procedures to prevent moisture absorption.
