HALOGEN FREE AND ROHS COMPLIANT, SMINI6-F3-B, SC-113DB, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Additional Feature:
BUILT IN BIAS RESISTOR RATIO IS 1
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
35
JESD-30 Code:
R-PDSO-F6
JESD-609 Code:
e6
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
NPN
Power Dissipation-Max (Abs):
0.15 W
Surface Mount:
YES
Terminal Finish:
TIN BISMUTH
Terminal Form:
FLAT
Terminal Position:
DUAL
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMC564010R Frequently Asked Questions (FAQs)
The recommended land pattern for the DMC564010R can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal soldering and reliability.
The DMC564010R has a high power density, and proper thermal management is crucial to ensure reliable operation. Engineers can use thermal interface materials (TIMs) such as thermal tape or thermal grease to improve heat transfer between the device and the heat sink. Additionally, a heat sink with a high thermal conductivity and a sufficient surface area can help to dissipate heat effectively.
While the datasheet specifies the recommended operating temperature range, engineers may want to know the maximum operating temperature range for the DMC564010R. According to Panasonic, the maximum operating temperature range for the DMC564010R is -40°C to +150°C, but this may vary depending on the specific application and environmental conditions.
The DMC564010R is designed to be robust and reliable, but it may not be suitable for extremely high-vibration environments. Engineers should consult with Panasonic's application engineers or refer to the device's reliability report to determine its suitability for their specific application. Additional mechanical support or vibration damping measures may be necessary to ensure reliable operation.
To ensure the DMC564010R's EMC, engineers should follow proper PCB design and layout guidelines, such as keeping sensitive analog circuits away from high-frequency digital circuits, using proper grounding and shielding, and implementing electromagnetic interference (EMI) filters or shielding if necessary. Additionally, engineers should consult with Panasonic's application engineers or refer to the device's EMC report for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC564010R Overview

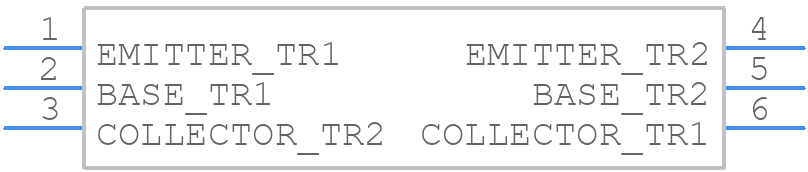

Use the download button to access the DMC564010R schematic symbol, PCB footprint, and 3D model.
