HALOGEN FREE AND ROHS COMPLIANT, SMINI6-F3-B, SC-113DB, 6 PIN
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Additional Feature:
BUILT IN BIAS RESISTOR RATIO IS 4.7
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
80
JESD-30 Code:
R-PDSO-F6
JESD-609 Code:
e6
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
NPN
Power Dissipation-Max (Abs):
0.15 W
Surface Mount:
YES
Terminal Finish:
TIN BISMUTH
Terminal Form:
FLAT
Terminal Position:
DUAL
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMC564040R Frequently Asked Questions (FAQs)
The recommended land pattern for the DMC564040R can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support.
The DMC564040R has a thermal pad on the bottom, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the component and consider using a heat sink if necessary.
The maximum operating temperature range for the DMC564040R is -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the component's performance at higher temperatures to ensure reliability.
The DMC564040R is designed to withstand moderate vibration, but it's essential to ensure the component is properly secured to the PCB and that the PCB is designed to withstand the expected vibration levels. Consult the datasheet and Panasonic's application notes for more information.
To troubleshoot issues with the DMC564040R, start by verifying the component's pinout and connections, then check the power supply and input signals. Use an oscilloscope to monitor the output signals and verify they meet the expected specifications. Consult the datasheet and Panasonic's application notes for troubleshooting guides and FAQs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC564040R Overview

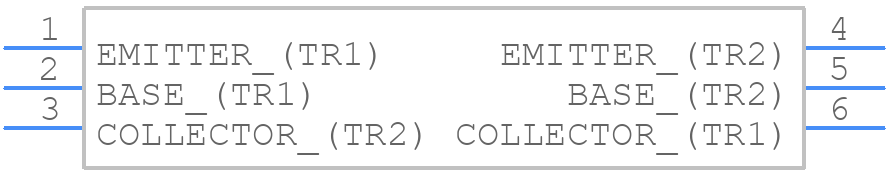

Use the download button to access the DMC564040R schematic symbol, PCB footprint, and 3D model.
