DMG264120R - Panasonic

Description: DMG264120R, Dual Digital Transistor, NPN, PNP 500 (NPN) mA, -500 (PNP) mA 50 (NPN) V, -50 (PNP) V 4.7 kΩ, Ratio Of 1

Download DMG264120R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

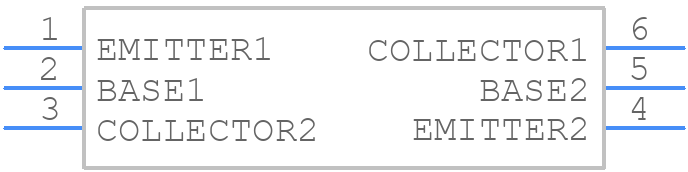

DMG264120R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMG264120R - Panasonic PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - mini6-g4-b-ren1
click to zoom
3D Models
DMG264120R - Panasonic - 3D model - SOT23 (6-Pin) - mini6-g4-b-ren1
click to zoom

DMG264120R Details

  • Manufacturer Part Number:

    DMG264120R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINI6-G4-B, SC-74, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO 1

  • Collector Current-Max (IC):

    0.5 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    50

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN AND PNP

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
