DMG904010R - Panasonic

Description: DMG904010R, Dual Digital Transistor, NPN, PNP 100 (NPN) mA, -100 (PNP) mA 50 (NPN) V, -50 (PNP) V, 6-Pin SSMini6 F3 B

Download DMG904010R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

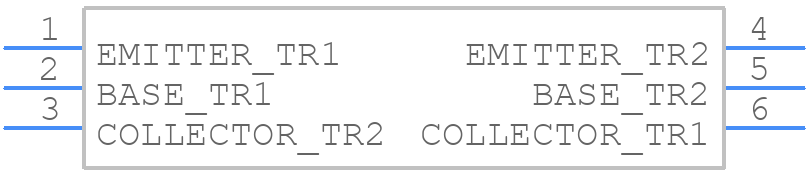

DMG904010R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMG904010R - Panasonic PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SSMini6-F3-B
click to zoom
3D Models
DMG904010R - Panasonic - 3D model - SO Transistor Flat Lead - SSMini6-F3-B
click to zoom

DMG904010R Details

  • Manufacturer Part Number:

    DMG904010R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SSMINI6-F3-B, SC-107C, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    210

  • JESD-30 Code:

    R-PDSO-F6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN AND PNP

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    150 MHz

DMG904010R Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DMG904010R can be found in the Panasonic Electronic Components' recommended footprint document or by consulting with a PCB design expert.
  • To ensure reliability in high-temperature applications, follow the recommended derating guidelines, ensure proper thermal management, and consider using a thermally conductive interface material to reduce thermal resistance.
  • The maximum allowable voltage for the DMG904010R is specified in the datasheet, but it's essential to consider voltage derating for high-temperature applications and to ensure the device is operated within the recommended voltage range.
  • The DMG904010R is suitable for high-frequency applications, but it's crucial to consider the device's parasitic capacitance, inductance, and resistance when designing the circuit. Consult the datasheet and application notes for guidance.
  • To ensure ESD protection for the DMG904010R, follow proper handling and storage procedures, use ESD-protective packaging, and consider implementing ESD protection circuits in the design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMG904010R Overview

Use the download button to access the DMG904010R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMG90, or try a keyword search, such as Small Signal Bipolar Transistors
