HALOGEN FREE AND ROHS COMPLIANT, SSMINI6-F3-B, SC-107C, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Additional Feature:
BUILT IN BIAS RESISTOR RATIO 1
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
35
JESD-30 Code:
R-PDSO-F6
Number of Elements:
2
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN AND PNP
Power Dissipation-Max (Abs):
0.125 W
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMG964010R Frequently Asked Questions (FAQs)
Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The DMG964010R has a high power dissipation rating. To manage thermal issues, ensure good airflow, use a heat sink or thermal pad, and follow Panasonic's recommended thermal design guidelines.
While the datasheet specifies an operating temperature range of -55°C to 150°C, it's essential to note that the device's performance and reliability may degrade above 125°C. Consult Panasonic's application notes for more information.
The DMG964010R is designed to withstand moderate vibration and shock. However, for extreme environmental conditions, it's recommended to consult Panasonic's reliability and environmental testing data or contact their technical support for guidance.
Follow Panasonic's recommended usage guidelines, storage conditions, and handling procedures. Ensure proper soldering and assembly, and avoid exposing the device to excessive moisture, temperature, or electrical stress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMG964010R Overview

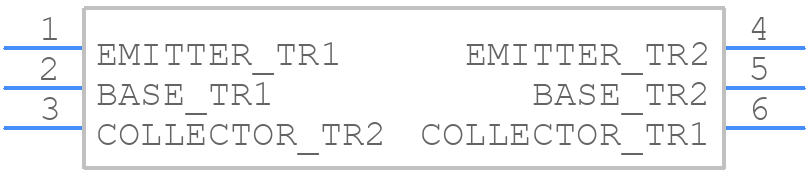

Use the download button to access the DMG964010R schematic symbol, PCB footprint, and 3D model.
