DMN2991UDJ-7 - Diodes Incorporated

Description: Mosfet Array 20V 520mA (Ta) 400mW (Ta) Surface Mount SOT-963

Download DMN2991UDJ-7 Model

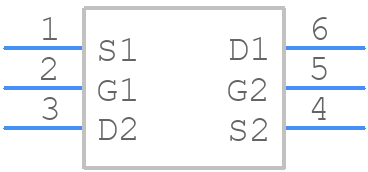

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMN2991UDJ-7 - Diodes Incorporated PCB footprint - Other - Other - DMN2991UDJ-7-1
click to zoom
3D Models
DMN2991UDJ-7 - Diodes Incorporated  - 3D model - Other - DMN2991UDJ-7-1
click to zoom

DMN2991UDJ-7 Details

  • Manufacturer Part Number:

    DMN2991UDJ-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-963, 6 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    0.385 A

  • Drain-source On Resistance-Max:

    0.99 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    3.7 pF

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.4 W

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMN2991UDJ-7 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the DMN2991UDJ-7 is 1.8V to 5.5V.
  • To ensure proper biasing, connect the gate to a voltage source through a resistor, and connect the source to ground through a resistor. The recommended biasing voltage is typically 1/3 to 1/2 of the drain-source voltage.
  • The maximum power dissipation for the DMN2991UDJ-7 is 1.4W. It's essential to ensure the device is properly heat-sinked to prevent overheating.
  • Yes, the DMN2991UDJ-7 can be used as a switch. However, it's essential to ensure the device is properly biased and the voltage and current ratings are not exceeded.
  • To protect the DMN2991UDJ-7 from ESD, handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container.
