Diodes Incorporated recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the PCB.
To ensure reliable operation at high temperatures, it is essential to follow the recommended operating conditions, provide adequate heat sinking, and avoid exceeding the maximum junction temperature (Tj) of 150°C.
Diodes Incorporated recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a ramp rate of 3°C/s to prevent thermal damage.
Yes, the DMN2991UDR4-7R is qualified to AEC-Q101 standards, making it suitable for high-reliability and automotive applications. However, it is essential to follow the recommended operating conditions and testing procedures to ensure compliance.
To prevent ESD damage, it is recommended to handle the device with ESD-protective equipment, such as wrist straps, mats, and bags. Additionally, ensure that the device is stored in a protective package or tube to prevent static discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMN2991UDR4-7R Overview

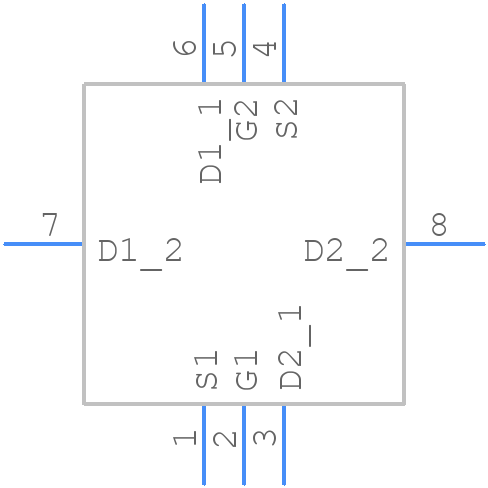

Use the download button to access the DMN2991UDR4-7R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMN29,
or try a keyword search, such as Small Signal Field-Effect Transistors
