DMN61D9UDW-7 - Diodes Incorporated

Description: MOSFET N-Ch Enh Mode FET 60V 20Vgss 1.2Ohms

Download DMN61D9UDW-7 Model

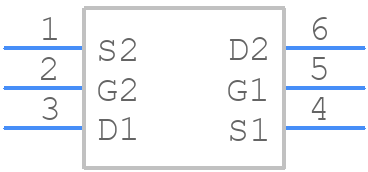

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMN61D9UDW-7 - Diodes Incorporated PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - DMN61D9UDW-7
click to zoom
3D Models
DMN61D9UDW-7 - Diodes Incorporated  - 3D model - SOT23 (6-Pin) - DMN61D9UDW-7
click to zoom

DMN61D9UDW-7 Details

  • Manufacturer Part Number:

    DMN61D9UDW-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOT-363, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    0.35 A

  • Drain-source On Resistance-Max:

    3.5 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    2.5 pF

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.41 W

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMN61D9UDW-7 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for DMN61D9UDW-7 is a standard SOT363 package with a 1.6mm x 1.6mm body size and a 0.5mm pitch. The datasheet provides a recommended land pattern and solder mask layout.
  • To ensure reliable operation of DMN61D9UDW-7 in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. The device is rated for operation up to 150°C, but derating may be necessary for extended reliability.
  • The maximum allowable voltage for DMN61D9UDW-7 is 20V. Exceeding this voltage may result in device damage or failure.
  • DMN61D9UDW-7 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing, such as using ESD-safe workstations, wrist straps, and packaging materials.
  • The recommended storage condition for DMN61D9UDW-7 is in a dry, cool place, away from direct sunlight and moisture. The device should be stored in its original packaging or in a sealed bag with desiccant to maintain a relative humidity of 50% or less.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMN61D9UDW-7 Overview

Use the download button to access the DMN61D9UDW-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMN61, or try a keyword search, such as Small Signal Field-Effect Transistors
