DMTH8012LPSQ-13 - Diodes Incorporated

Description: MOSFET MOSFET BVDSS: 61V-100V

Download DMTH8012LPSQ-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

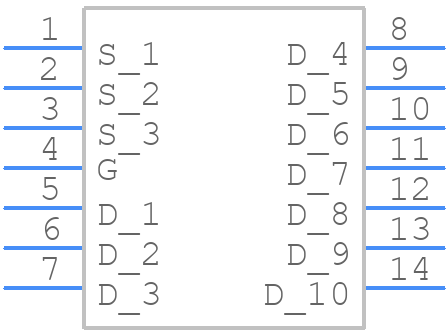

Symbol
DMTH8012LPSQ-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
DMTH8012LPSQ-13 - Diodes Incorporated PCB footprint - Other - Other - PowerDI5060-8_2021_1
click to zoom
3D Models
DMTH8012LPSQ-13 - Diodes Incorporated - 3D model - Other - PowerDI5060-8_2021_1
click to zoom

DMTH8012LPSQ-13 Details

  • Manufacturer Part Number:

    DMTH8012LPSQ-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Avalanche Energy Rating (Eas):

    10.2 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    80 V

  • Drain Current-Max (ID):

    10 A

  • Drain-source On Resistance-Max:

    0.017 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMTH8012LPSQ-13 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for DMTH8012LPSQ-13 is a 2x2 array of 0.5mm pitch pads with a 1.3mm x 1.3mm body size. A thermal pad is also recommended for heat dissipation.
  • To ensure reliability in high-temperature applications, ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Also, follow proper PCB design and thermal management guidelines to minimize thermal resistance and prevent overheating.
  • The maximum allowable voltage for DMTH8012LPSQ-13 is 20V. Exceeding this voltage may cause permanent damage to the device.
  • To prevent electrostatic discharge (ESD) damage, handle the device by the body or pins, and avoid touching the die. Use an ESD wrist strap or mat, and ensure that the workspace is ESD-protected. Follow proper ESD handling procedures during assembly and storage.
  • Store DMTH8012LPSQ-13 in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, and the relative humidity should be below 60%.
