DN1509K1-G - Microchip

Description: Trans MOSFET N-CH Si 90V 0.2A 5-Pin SOT-23 T/R

Download DN1509K1-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

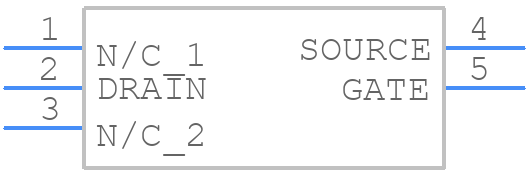

Symbol
DN1509K1-G - Microchip - PCB symbol
click to zoom
PCB Footprints
DN1509K1-G - Microchip PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - 5-Lead SOT-23 Package Outline (K1) 2.90x1.60mm body, 1.45mm height (max), 0.95mm pitch
click to zoom
3D Models
DN1509K1-G - Microchip - 3D model - SOT23 (5-Pin) - 5-Lead SOT-23 Package Outline (K1) 2.90x1.60mm body, 1.45mm height (max), 0.95mm pitch
click to zoom

DN1509K1-G Details

  • Manufacturer Part Number:

    DN1509K1-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    5

  • Manufacturer Package Code:

    SOT-23-5

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

DN1509K1-G Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a 1.5 mm via diameter for optimal thermal performance.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure proper airflow and avoid overheating the device.
  • Use X7R or X5R ceramic capacitors with a minimum capacitance of 10 uF and a maximum ESR of 100 mΩ for input and output filtering.
  • Check the input voltage, output load, and feedback resistors. Verify the device is properly configured and the output voltage is within the specified range.
  • The recommended input voltage range is 4.5 V to 18 V, with a maximum input voltage of 20 V for short-term transients.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DN1509K1-G Overview

Use the download button to access the DN1509K1-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DN150, or try a keyword search, such as Small Signal Field-Effect Transistors
