DP83620SQE/NOPB - Texas Instruments

Description: Texas Instruments DP83620SQE/NOPB Ethernet Transceiver, IEEE 802.3u, 10 Mbit/s, 100 Mbit/s 3.3 V, 48-Pin WQFN

Download DP83620SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

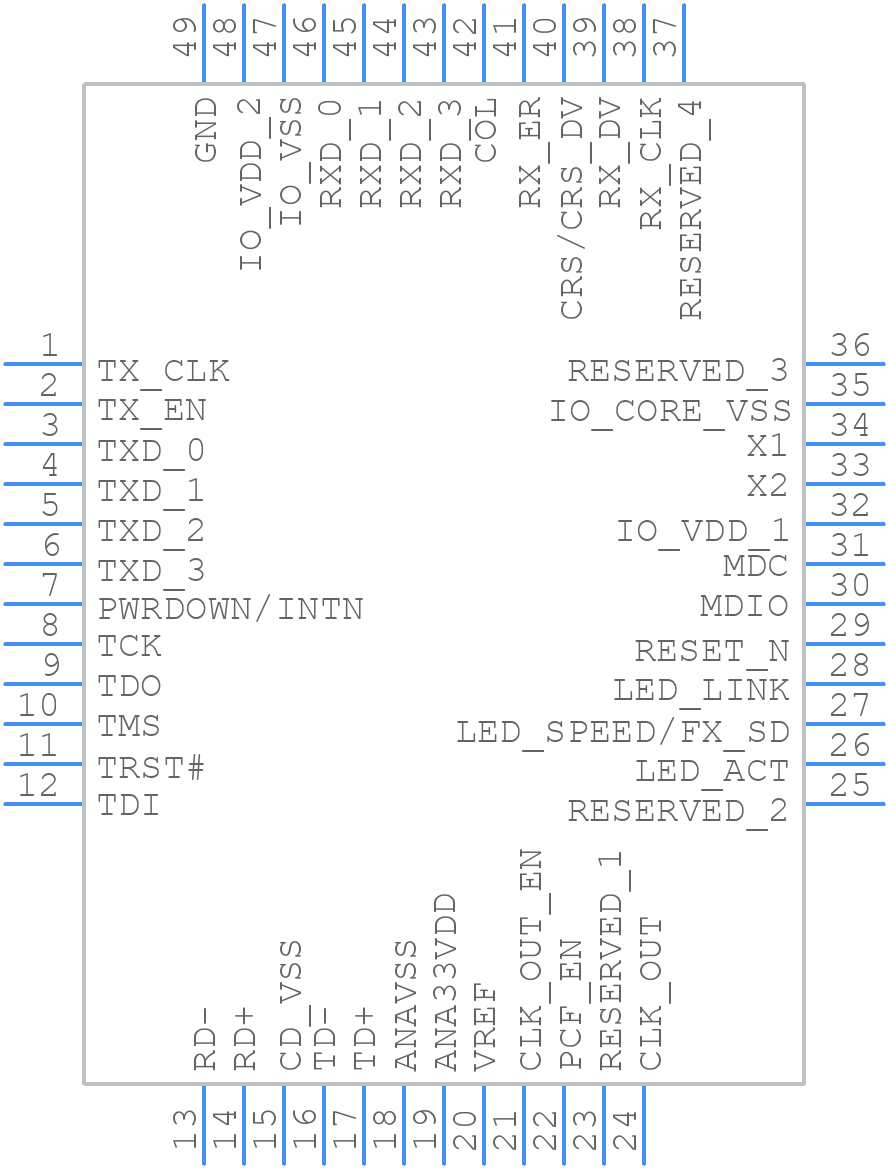

DP83620SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83620SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A_1
click to zoom
3D Models
DP83620SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A_1
click to zoom

DP83620SQE/NOPB Details

  • Manufacturer Part Number:

    DP83620SQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83620SQE/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'High-Speed PCB Layout Guidelines' application note (SLVA466) to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The DP83620SQE/NOPB can be configured for different PHY modes using the strap pins or through the MDIO interface. The specific configuration depends on the desired PHY mode and can be found in the datasheet or the 'DP83620SQE/NOPB PHY Mode Configuration' application note (SLVA469).
  • The power-up and power-down sequencing requirements are critical to ensure proper operation of the DP83620SQE/NOPB. The recommended power-up sequence is VCC, then VCCA, and finally VCCIO. The power-down sequence is the reverse. See the datasheet for more information.
  • Texas Instruments provides a troubleshooting guide in the 'DP83620SQE/NOPB Troubleshooting Guide' application note (SLVA471). This guide covers common issues, diagnostic techniques, and repair procedures.
  • The DP83620SQE/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. See the datasheet for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83620SQE/NOPB Overview

Use the download button to access the DP83620SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP836, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
