DP83620SQX/NOPB - Texas Instruments

Description: Industrial temperature, single port 10/100 Mbps Ethernet PHY transceiver with fiber support

Download DP83620SQX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

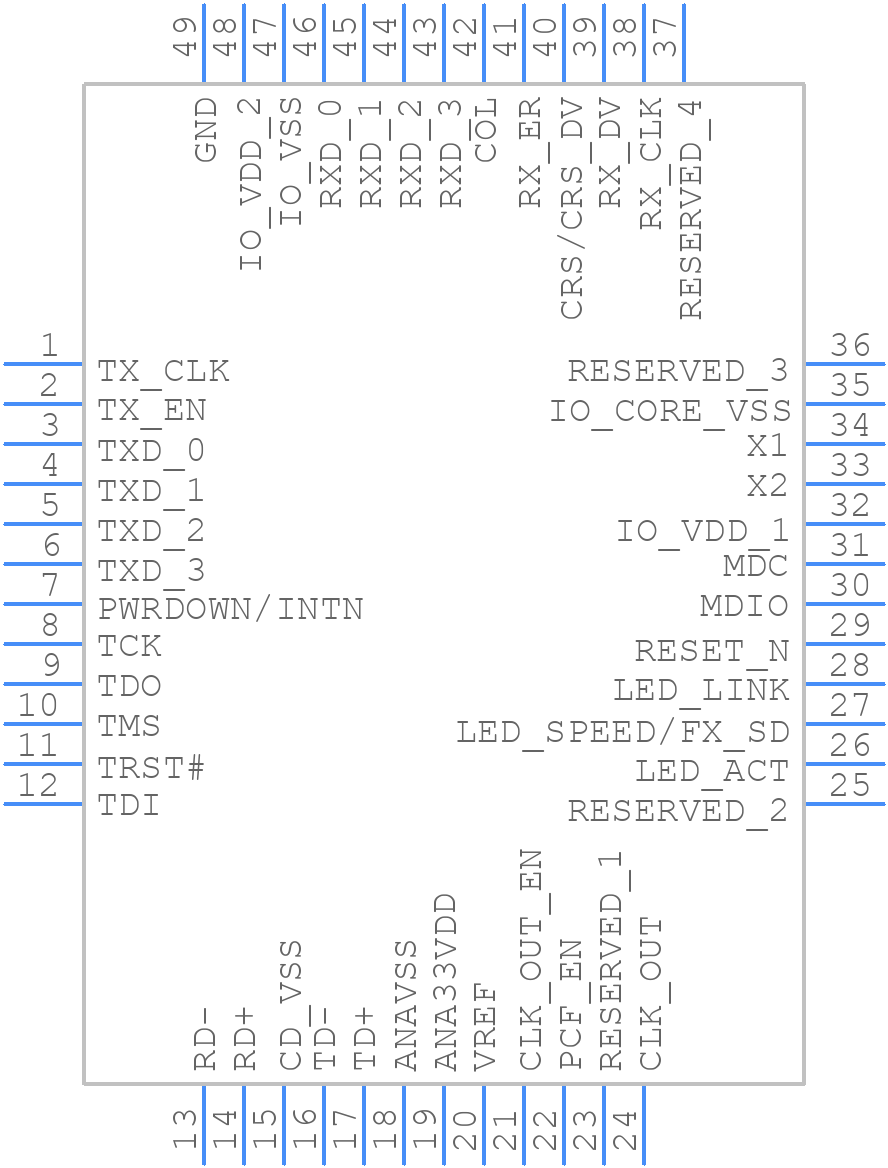

DP83620SQX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83620SQX/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom
3D Models
DP83620SQX/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom

DP83620SQX/NOPB Details

  • Manufacturer Part Number:

    DP83620SQX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83620SQX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'High-Speed PCB Layout Guidelines' application note (SLVA466) for optimal performance.
  • The DP83620SQX/NOPB can be configured using the TI's Phy Utility software, which provides a graphical user interface to configure the device for different network topologies, such as 10/100/1000 Mbps, half/full duplex, and auto-negotiation.
  • The DP83620SQX/NOPB supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard for Ethernet over twisted pair cables.
  • Texas Instruments provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. Additionally, the TI E2E forum and Phy Utility software can be used to debug and diagnose issues with the device.
  • Yes, the DP83620SQX/NOPB is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and harsh environment applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83620SQX/NOPB Overview

Use the download button to access the DP83620SQX/NOPB schematic symbol, PCB footprint, and 3D model.
