DP83640TVV - Texas Instruments

Description: Ethernet ICs IEEE 1588 precision-time protocol (PTP) Ethernet PHY transceiver 48-LQFP -40 to 85

Download DP83640TVV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

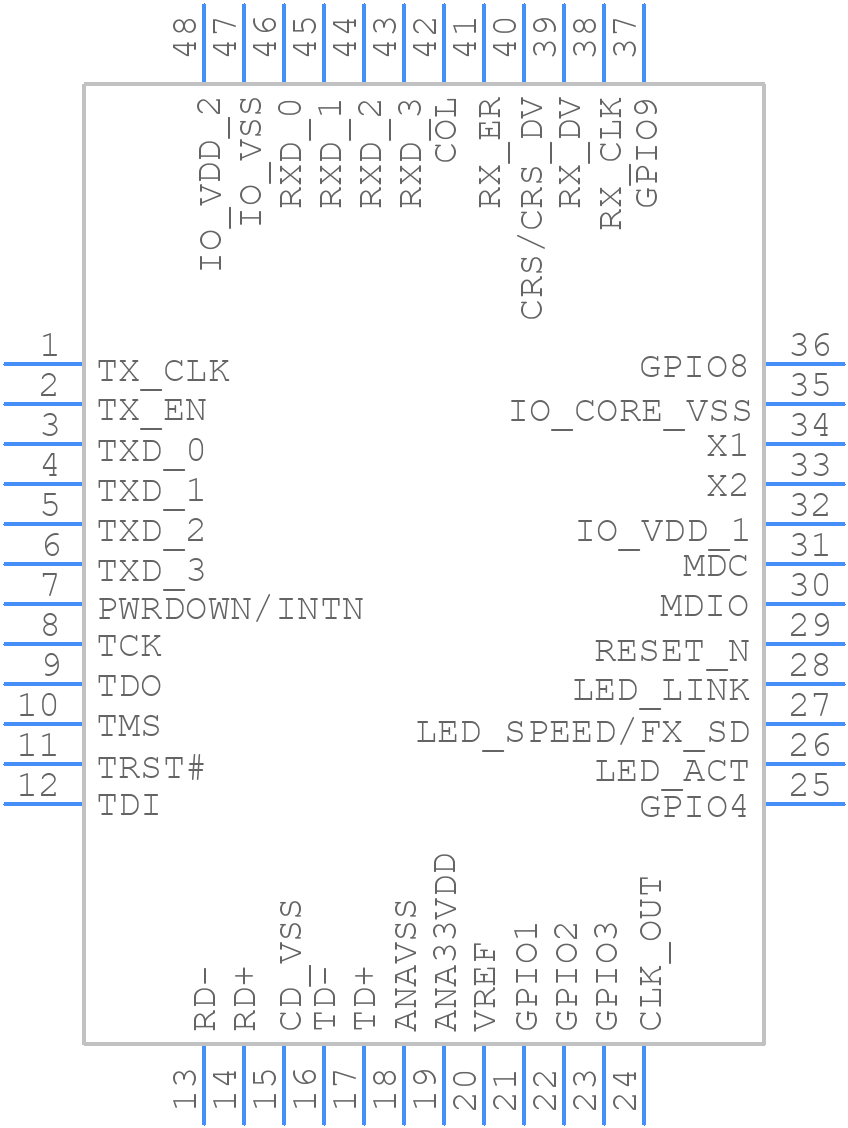

DP83640TVV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83640TVV - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PT (S-PQFP-G48
click to zoom
3D Models
DP83640TVV - Texas Instruments - 3D model - Quad Flat Packages - PT (S-PQFP-G48
click to zoom

DP83640TVV Details

  • Manufacturer Part Number:

    DP83640TVV

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e0

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

DP83640TVV Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83640TVV evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The DP83640TVV can be configured for different PHY modes (e.g., 10/100/1000 Mbps) using the device's register settings. Refer to the datasheet and the DP83640TVV programming guide for specific register settings and configuration details.
  • The DP83640TVV requires a specific power-up and power-down sequencing to ensure proper operation. Refer to the datasheet and the DP83640TVV application note for power management for detailed information.
  • Texas Instruments provides a troubleshooting guide for the DP83640TVV, which includes steps for identifying and resolving common issues, such as link faults, packet loss, and PHY errors.
  • The DP83640TVV has specific thermal management requirements to ensure reliable operation. Refer to the datasheet and the DP83640TVV thermal design guide for information on thermal design considerations, such as heat sink requirements and thermal interface materials.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83640TVV Overview

Use the download button to access the DP83640TVV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP836, or try a keyword search, such as Network Interfaces
