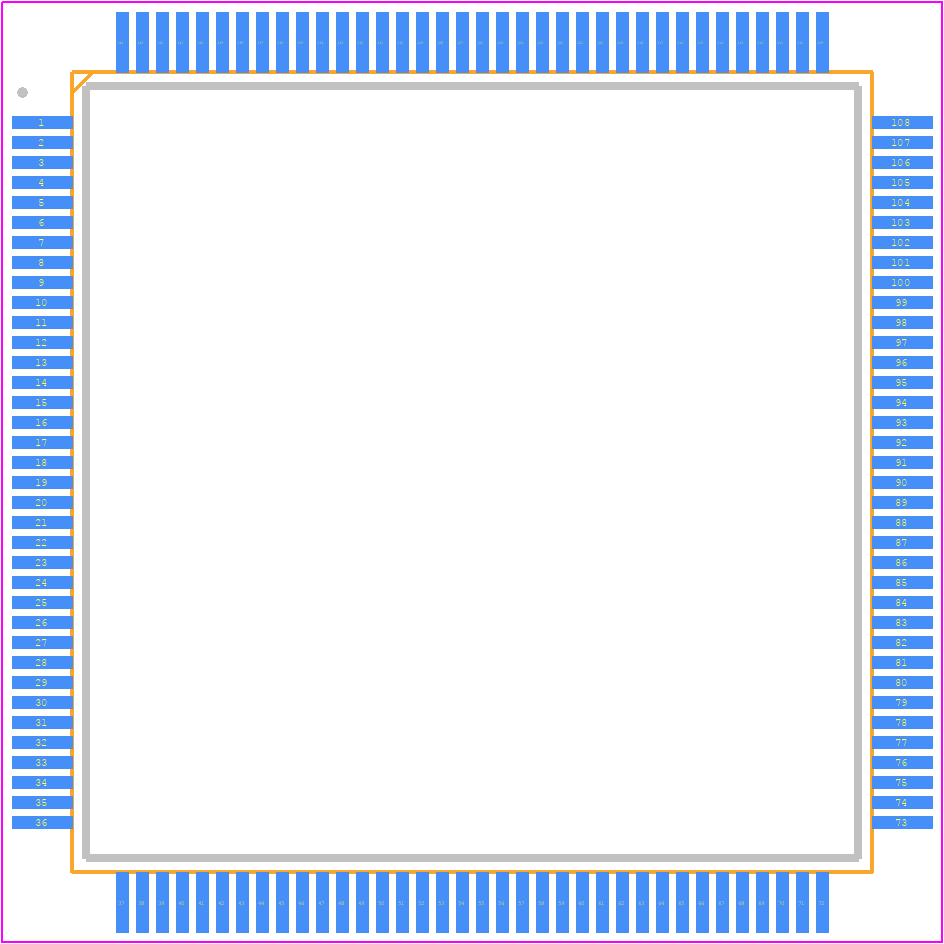

DP83816AVNG/63SN - Texas Instruments

DP83816AVNG/63SN Details

• Manufacturer Part Number:

  DP83816AVNG/63SN

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  LQFP-144

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Address Bus Width:

  32

• Boundary Scan:

  NO

• Bus Compatibility:

  PCI

• Clock Frequency-Max:

  25 MHz

• Communication Protocol:

  ASYNC, BIT; SYNC, BYTE; ETHERNET

• Data Encoding/Decoding Method:

  NRZ; NRZI; BIPH-LEVEL(MANCHESTER)

• Data Transfer Rate-Max:

  12.5 MBps

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PQFP-G144

• JESD-609 Code:

  e3

• Length:

  20 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Serial I/Os:

  1

• Number of Terminals:

  144

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP144,.87SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.6 mm

• Supply Current-Max:

  140 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  20 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, LAN
