DP83822HFRHBT - Texas Instruments

Description: Robust, Low Power 10/100 Ethernet Physical Layer Transceiver Extended Temperature With Fiber Support

Download DP83822HFRHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

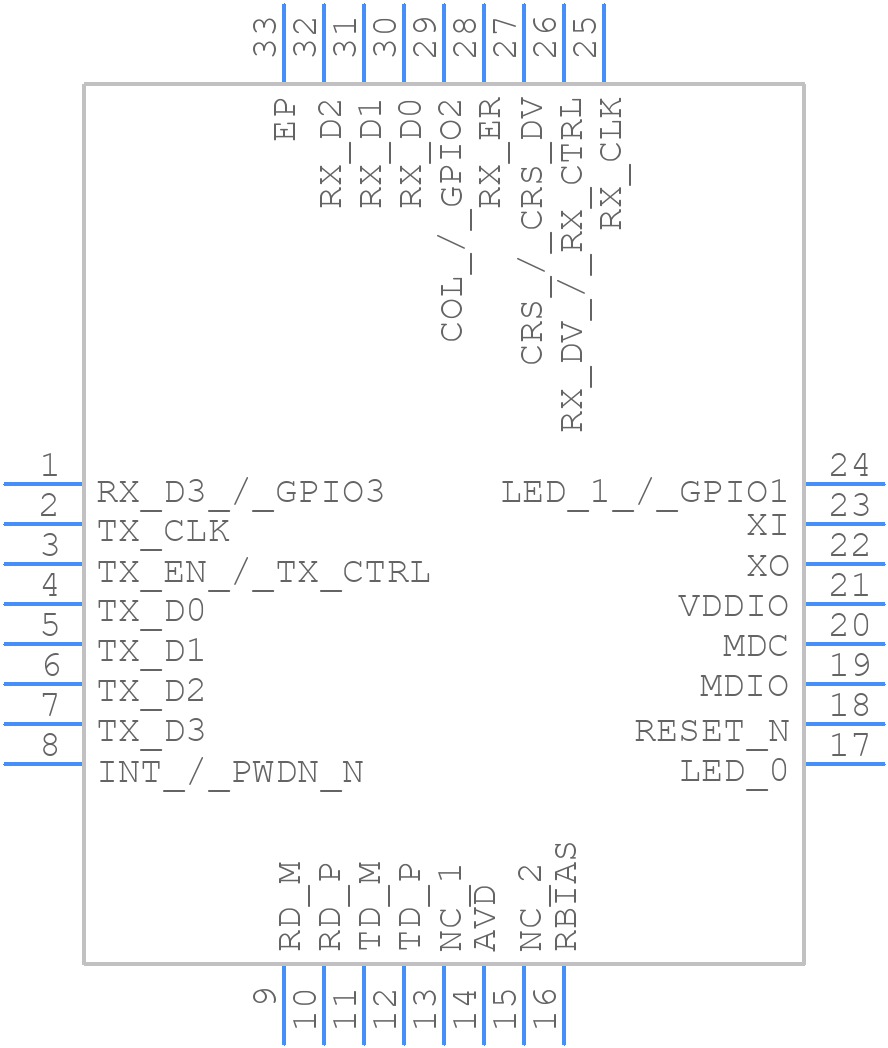

DP83822HFRHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83822HFRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032B
click to zoom
3D Models
DP83822HFRHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032B
click to zoom

DP83822HFRHBT Details

  • Manufacturer Part Number:

    DP83822HFRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-07-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

DP83822HFRHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83822HFRHBT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The DP83822HFRHBT can be configured using the TI's PHY Utility software, which provides a graphical user interface to configure the device's registers and settings for specific Ethernet applications.
  • The DP83822HFRHBT has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Additionally, the device has a thermal shutdown feature that disables the device if the junction temperature exceeds 150°C.
  • Texas Instruments provides a troubleshooting guide for the DP83822HFRHBT, which includes steps to identify and resolve common issues such as link faults, packet loss, and device malfunctions.
  • The DP83822HFRHBT has multiple power management options, including Energy-Efficient Ethernet (EEE), Wake-on-LAN (WOL), and power-down modes, which can be configured using the device's registers or through the PHY Utility software.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83822HFRHBT Overview

Use the download button to access the DP83822HFRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces
