DP83822IFRHBR - Texas Instruments

Description: Low-power, robust 10/100-Mbps Ethernet PHY transceiver with fiber support & 16-kV ESD

Download DP83822IFRHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

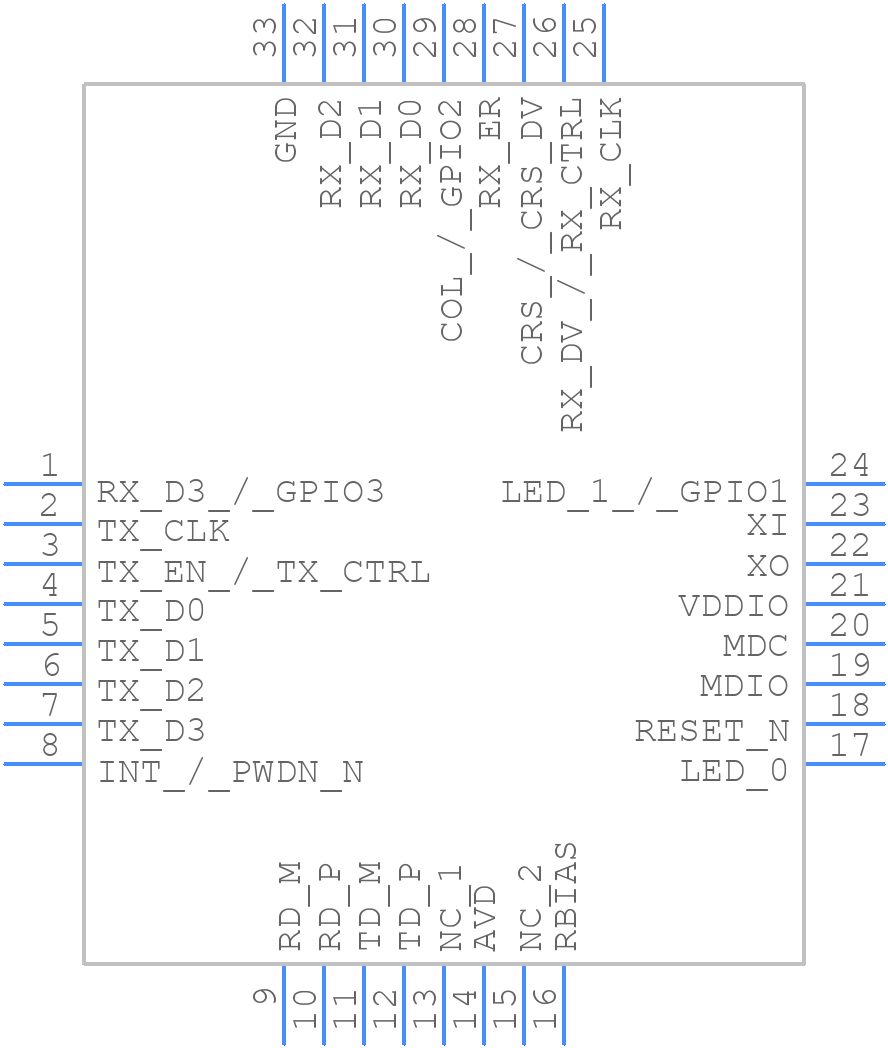

DP83822IFRHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83822IFRHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032B
click to zoom
3D Models
DP83822IFRHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032B
click to zoom

DP83822IFRHBR Details

  • Manufacturer Part Number:

    DP83822IFRHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-07-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

DP83822IFRHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83822IFRHBR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The DP83822IFRHBR can be configured using the SPI or I2C interface. Texas Instruments provides a software development kit (SDK) and application notes that provide examples of how to configure the device for specific Ethernet applications.
  • The DP83822IFRHBR has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, thermal vias, and thermal pads on the PCB.
  • Texas Instruments provides a troubleshooting guide in the DP83822IFRHBR datasheet, which includes steps to identify and resolve common issues such as link faults, packet loss, and PHY register configuration errors.
  • The DP83822IFRHBR has multiple power management modes, including Energy-Efficient Ethernet (EEE) and Wake-on-LAN (WOL). These modes can be configured using the SPI or I2C interface to reduce power consumption and optimize system performance.
