DP83825IRMQT - Texas Instruments

Description: Ethernet ICs Smallest form factor (3-mm by 3-mm), low-power 10/100-Mbps Ethernet PHY transceiver with 50-MHz c 24-WQFN -40 to 85

Download DP83825IRMQT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

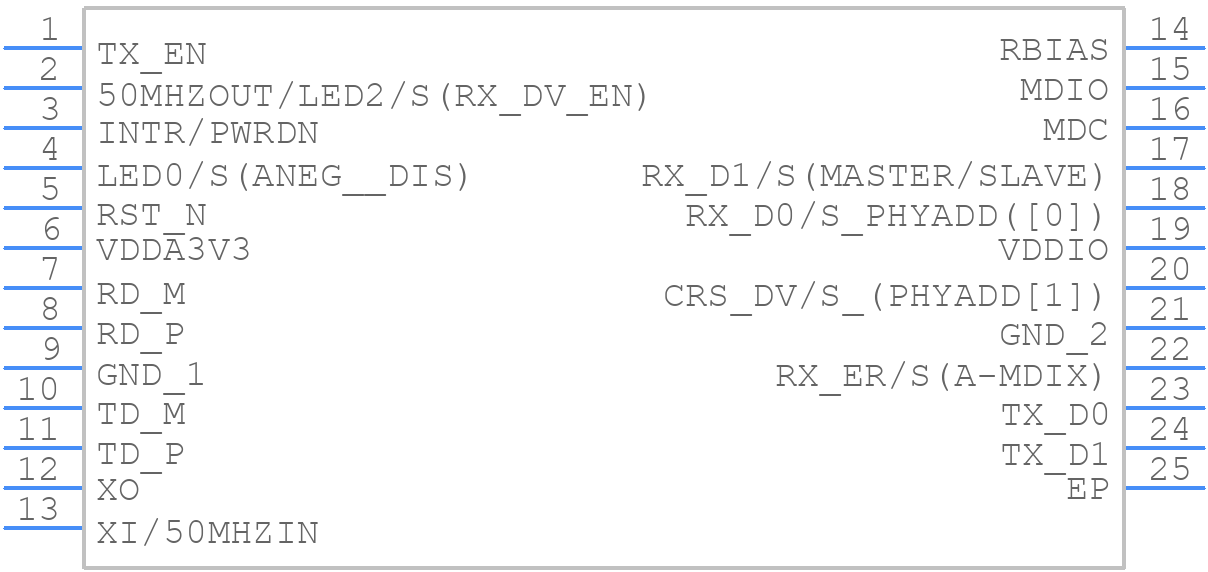

DP83825IRMQT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83825IRMQT - Texas Instruments PCB footprint - Other - Other - DP83825IRMQT-2
click to zoom
3D Models
DP83825IRMQT - Texas Instruments - 3D model - Other - DP83825IRMQT-2
click to zoom

DP83825IRMQT Details

  • Manufacturer Part Number:

    DP83825IRMQT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-09-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DP83825IRMQT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83825 application note (SLAU367) that includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The DP83825IRMQT is a PHY device that supports multiple Ethernet protocols, including 10BASE-T, 100BASE-TX, and 1000BASE-T. Configuration is typically done through the device's registers using an I2C or MDIO interface. Refer to the datasheet and application notes for specific configuration details.
  • The DP83825IRMQT has a typical power consumption of 350 mW in 1000BASE-T mode and 150 mW in 10/100BASE-TX mode. The device has a junction-to-ambient thermal resistance of 30°C/W and a maximum junction temperature of 125°C. Refer to the datasheet for more detailed power and thermal characteristics.
  • Troubleshooting the DP83825IRMQT typically involves checking the device's registers, monitoring the link status, and verifying the signal integrity. Texas Instruments provides a troubleshooting guide in the DP83825 application note (SLAU367) that covers common issues and solutions.
  • Yes, the DP83825IRMQT is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and automotive applications.
