DP83848IVVX/NOPB - Texas Instruments

Description: PHYTER Industrial Temperature Single Port 10/100 Mb/s Ethernet Physical Layer Transceiver

Download DP83848IVVX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

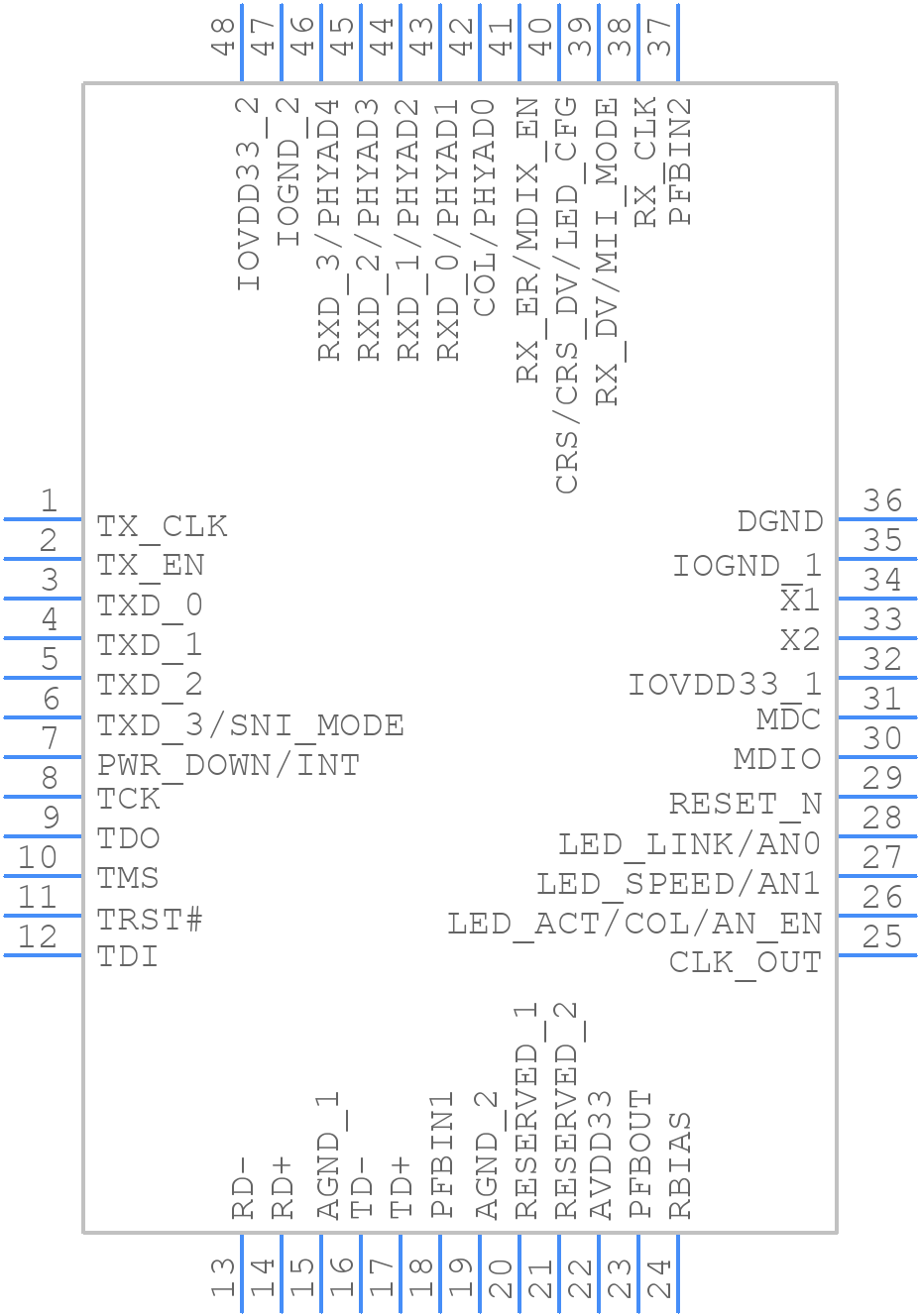

DP83848IVVX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83848IVVX/NOPB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - DP83848IVVX/NOPB
click to zoom
3D Models
DP83848IVVX/NOPB - Texas Instruments - 3D model - Quad Flat Packages - DP83848IVVX/NOPB
click to zoom

DP83848IVVX/NOPB Details

  • Manufacturer Part Number:

    DP83848IVVX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83848IVVX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'High-Speed PCB Layout Guidelines' application note (SL-427) for optimal performance.
  • The DP83848IVVX/NOPB is a PHY device that supports multiple Ethernet protocols. Configuration is typically done through the MDIO interface using a microcontroller or a dedicated management interface. Refer to the datasheet and the 'PHYTER' software tool for configuration details.
  • The maximum cable length supported by the DP83848IVVX/NOPB is dependent on the Ethernet protocol and cable quality. For 1000BASE-T, the maximum cable length is approximately 100 meters. For 10/100BASE-TX, it's approximately 100 meters for Category 5e cable and 50 meters for Category 3 cable.
  • Troubleshooting the DP83848IVVX/NOPB typically involves checking the device's registers, monitoring the link status, and verifying the PCB layout and component selection. Texas Instruments provides a 'PHY Troubleshooting Guide' application note (SL-455) that provides detailed troubleshooting steps.
  • The power consumption of the DP83848IVVX/NOPB varies depending on the operating mode and speed. The typical power consumption is around 350 mW in 1000BASE-T mode. The device has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. Refer to the datasheet for detailed power and thermal characteristics.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83848IVVX/NOPB Overview

Use the download button to access the DP83848IVVX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces

About Texas Instruments
