DP83848JSQ/NOPB - Texas Instruments

Description: Mini-LS, commercial temperature, single-port 10/100 Mb/s PHYTER™ Ethernet physical layer transceiver

Download DP83848JSQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

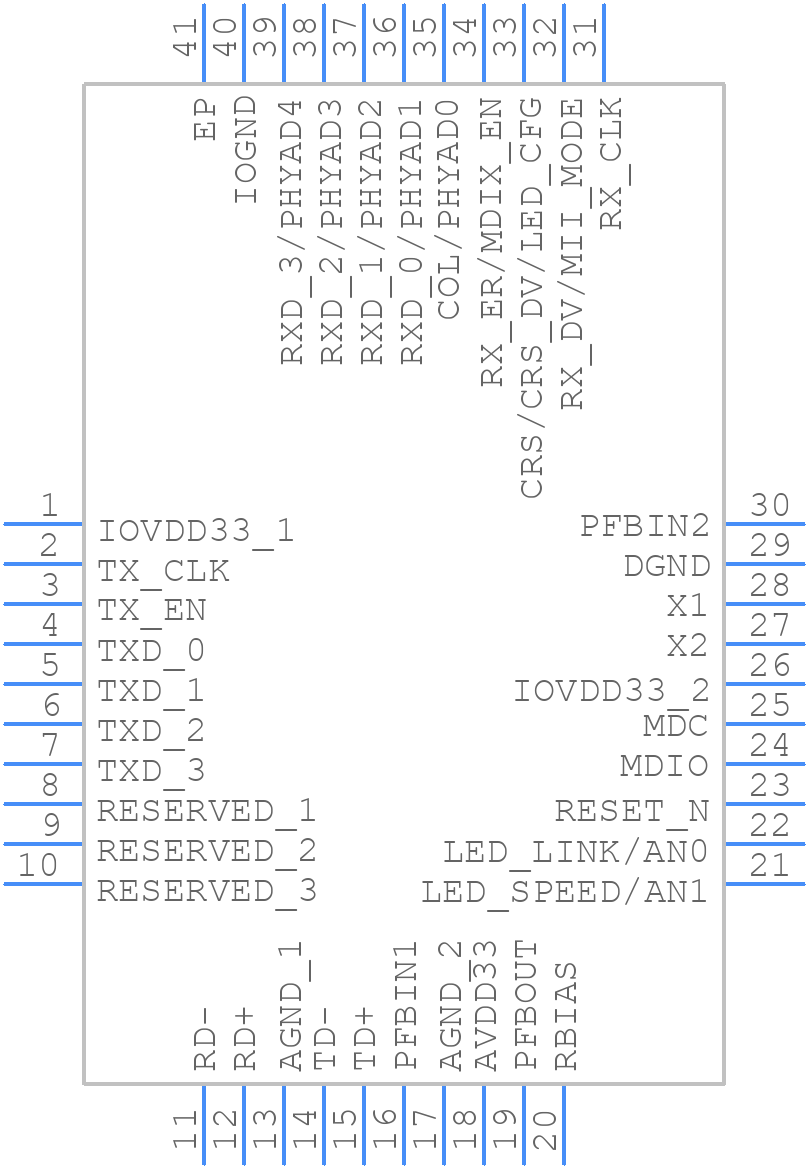

DP83848JSQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83848JSQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTA (S-PQFP-N40)_2
click to zoom
3D Models
DP83848JSQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTA (S-PQFP-N40)_2
click to zoom

DP83848JSQ/NOPB Details

  • Manufacturer Part Number:

    DP83848JSQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LCC

  • Pin Count:

    40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DP83848JSQ/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'Ethernet PHY Layout Guidelines' application note (SLAA503) for optimal performance.
  • The DP83848JSQ/NOPB can be configured for specific network speeds using the SPEED_SEL pins or through the MDIO interface using the PHY register settings. Refer to the datasheet for specific pin configurations and register settings.
  • The power consumption of the DP83848JSQ/NOPB varies depending on the operating mode and speed. Refer to the datasheet for specific power consumption values, but typical values are around 350mW in 1000BASE-T mode and 150mW in 10/100BASE-TX mode.
  • Texas Instruments provides a troubleshooting guide in the datasheet, which includes steps for debugging common issues such as link faults, packet loss, and PHY register settings. Additionally, the TI E2E forum and online resources can provide further assistance.
  • Yes, the DP83848JSQ/NOPB is rated for industrial temperature ranges of -40°C to 85°C, making it suitable for use in industrial and harsh environment applications.
