DP83848MPHPEP - Texas Instruments

Description: <p>Enhanced Product PHYTER extreme temperature single port 10/100 Mb/s Ethernet physical layer</p>

Download DP83848MPHPEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

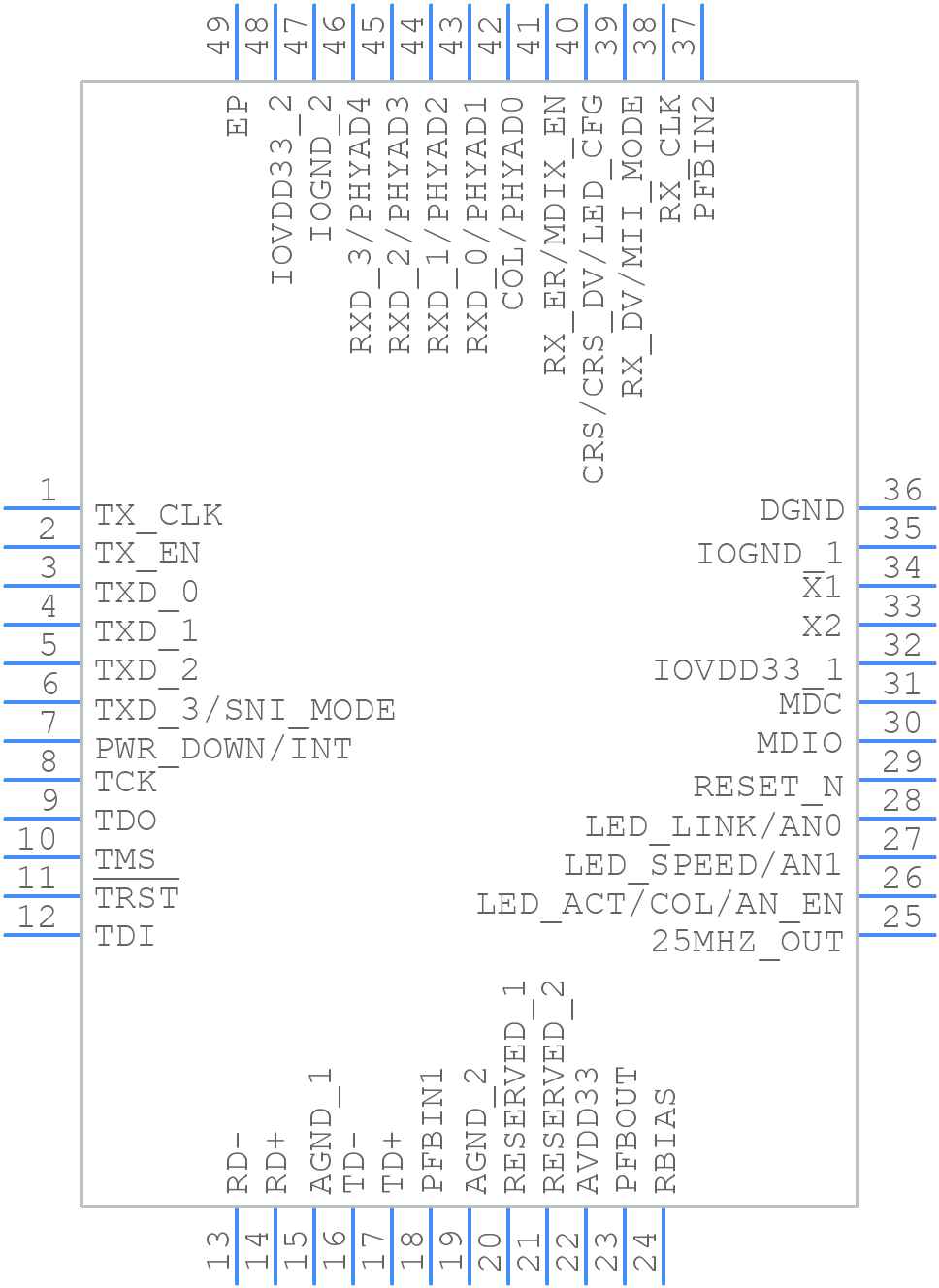

DP83848MPHPEP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83848MPHPEP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - php-48
click to zoom
3D Models
DP83848MPHPEP - Texas Instruments - 3D model - Quad Flat Packages - php-48
click to zoom

DP83848MPHPEP Details

  • Manufacturer Part Number:

    DP83848MPHPEP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83848MPHPEP Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide for the DP83848MPHPEP in the 'Layout' section of the datasheet. It's essential to follow this guide to ensure proper signal integrity and minimize electromagnetic interference (EMI).
  • The DP83848MPHPEP is a highly configurable device. You can configure it for specific Ethernet protocols (e.g., 10BASE-T, 100BASE-TX, 1000BASE-T) using the device's registers. Refer to the 'Register Description' section of the datasheet for more information.
  • The power-up sequence involves applying power to the device, followed by a reset signal (nRST) to initialize the device. The power-down sequence involves disabling the transmitter, followed by a power-down signal (PD) to shut down the device. Refer to the 'Power-Up/Power-Down Sequencing' section of the datasheet for more information.
  • Texas Instruments provides a troubleshooting guide for the DP83848MPHPEP in the 'Troubleshooting' section of the datasheet. You can also use tools like oscilloscopes and logic analyzers to debug issues with the device.
  • The DP83848MPHPEP has a maximum junction temperature (TJ) of 150°C. Ensure proper thermal design and heat dissipation to prevent overheating. Refer to the 'Thermal Information' section of the datasheet for more information.
