DP83848MPHPREP - Texas Instruments

Description: Ethernet ICs Enhanced Product PHYTER Extreme Temp

Download DP83848MPHPREP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

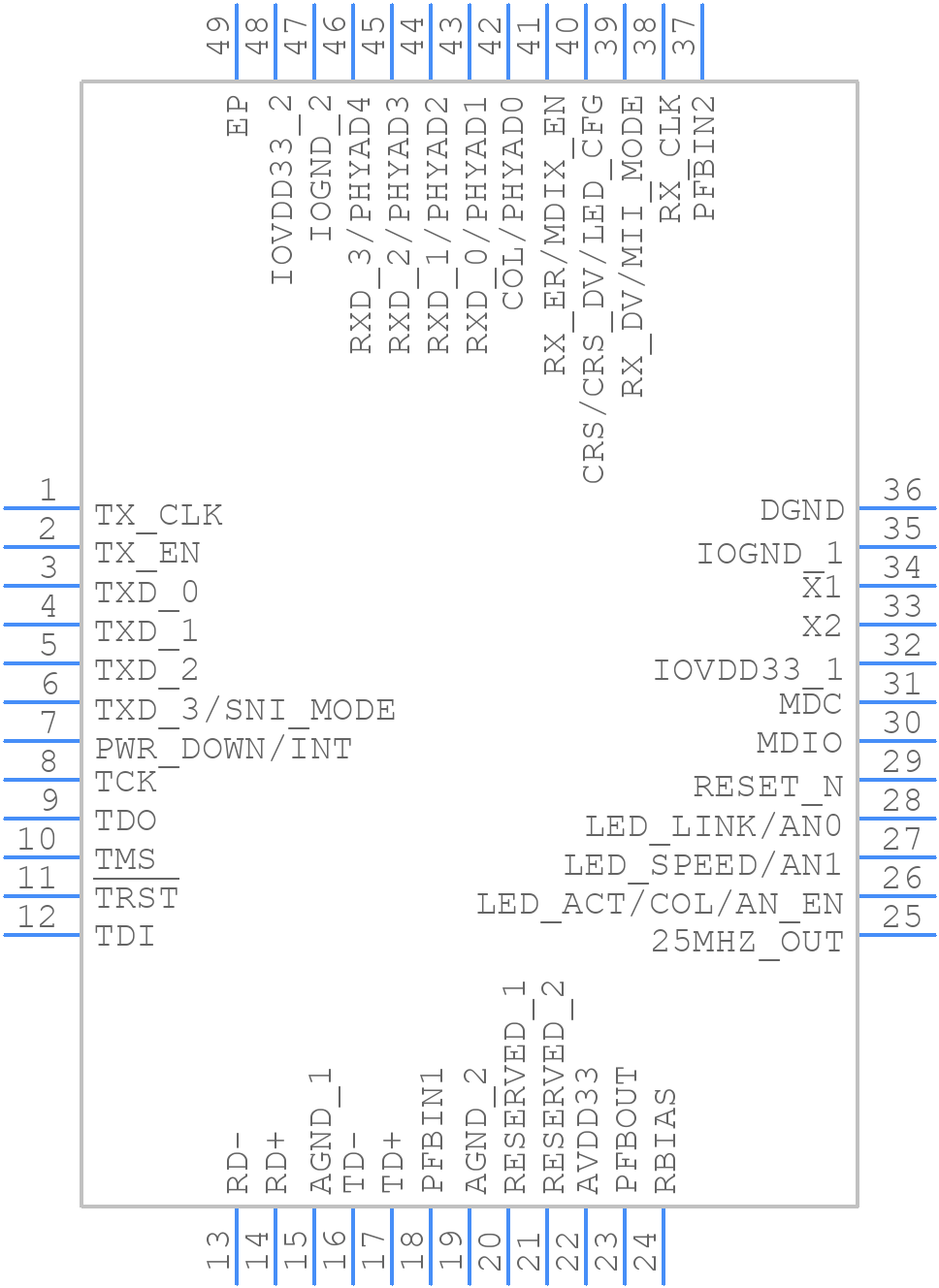

DP83848MPHPREP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83848MPHPREP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - php(s-pqfp-g48)/
click to zoom
3D Models
DP83848MPHPREP - Texas Instruments - 3D model - Quad Flat Packages - php(s-pqfp-g48)/
click to zoom

DP83848MPHPREP Details

  • Manufacturer Part Number:

    DP83848MPHPREP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    HTQFP-48

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83848MPHPREP Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83848MPHPREP evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The DP83848MPHPREP can be configured using the TI's PHY Utility software, which provides a graphical user interface to configure the device's registers and settings for specific Ethernet applications.
  • The DP83848MPHPREP has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Additionally, the device has a thermal shutdown feature that disables the device when the junction temperature exceeds 150°C.
  • Texas Instruments provides a troubleshooting guide for the DP83848MPHPREP, which includes steps to identify and resolve common issues such as link faults, packet loss, and device malfunctions.
  • The DP83848MPHPREP has multiple power management options, including Energy-Efficient Ethernet (EEE), Wake-on-LAN (WOL), and power-down modes, which can be configured using the device's registers or through the PHY Utility software.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83848MPHPREP Overview

Use the download button to access the DP83848MPHPREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
