Texas Instruments provides a recommended PCB layout in the DP83848MPTBREP Evaluation Module User's Guide (SLUU444) and the DP83848MPTBREP Layout Guide (SLYT444). These guides provide detailed information on component placement, routing, and thermal management to ensure optimal performance.
The DP83848MPTBREP can be configured using the PHY register settings. Texas Instruments provides a PHY Register Configuration Guide (SLAU575) that explains how to configure the PHY for different Ethernet applications, including 10BASE-T, 100BASE-TX, and 1000BASE-T.
The power-up and power-down sequences for the DP83848MPTBREP are critical to ensure proper operation. Texas Instruments provides a Power-Up and Power-Down Sequence Application Report (SLAA734) that outlines the recommended sequences for different power modes.
Texas Instruments provides a Troubleshooting Guide for the DP83848MPTBREP (SLAU576) that helps identify and resolve common issues, such as link faults, packet loss, and PHY register configuration errors.
The DP83848MPTBREP has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to follow proper thermal management practices, such as using a heat sink, thermal vias, and thermal pads. Texas Instruments provides a Thermal Management Application Report (SLAA735) that provides guidance on thermal design and layout.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DP83848MPTBREP Overview

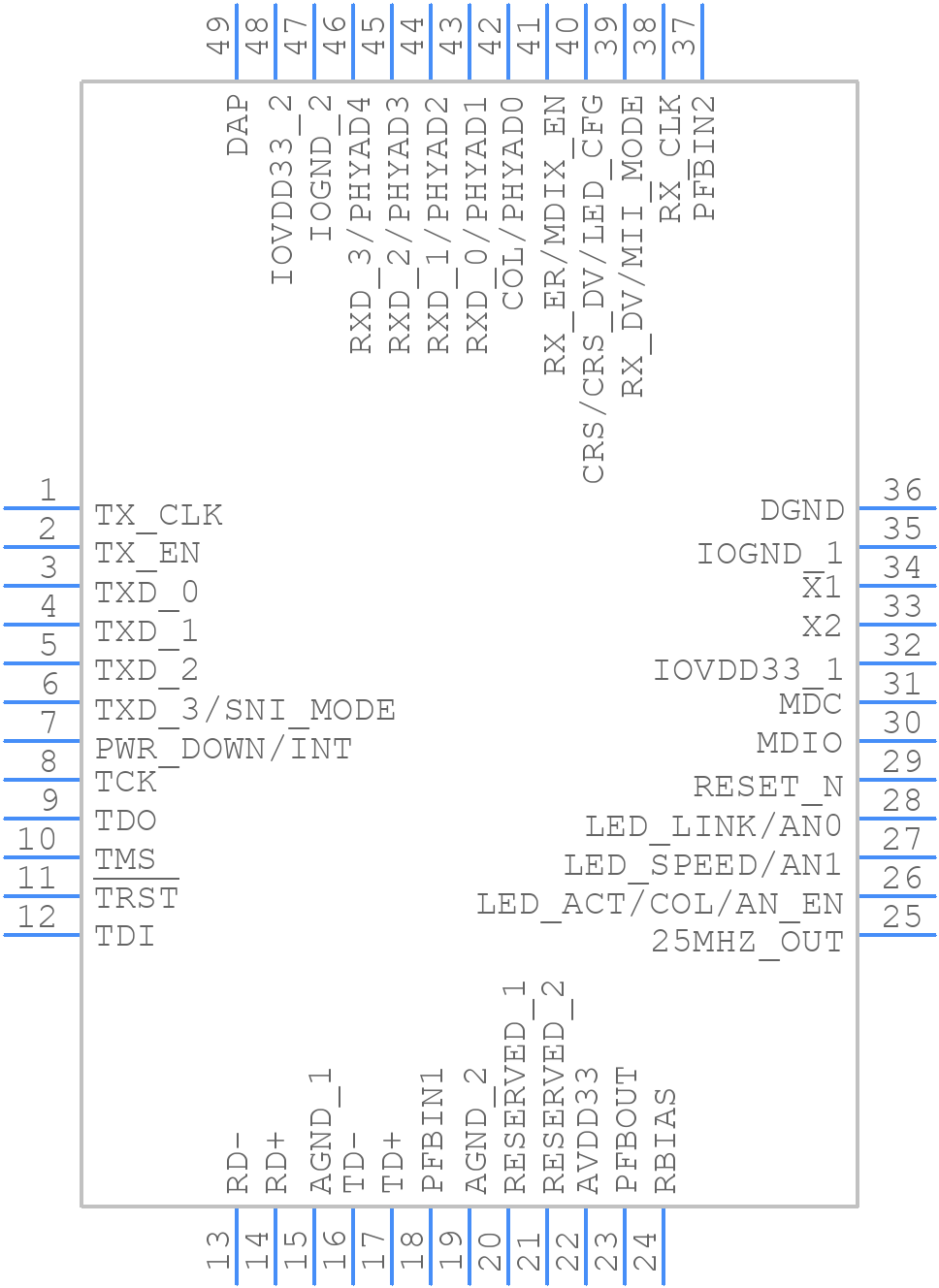

Use the download button to access the DP83848MPTBREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
