DP83848MSQ/NOPB - Texas Instruments

Description: Texas Instruments DP83848MSQ/NOPB, IEEE 802.3u Ethernet Transceiver, 3.3 V, 40-Pin LLP

Download DP83848MSQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

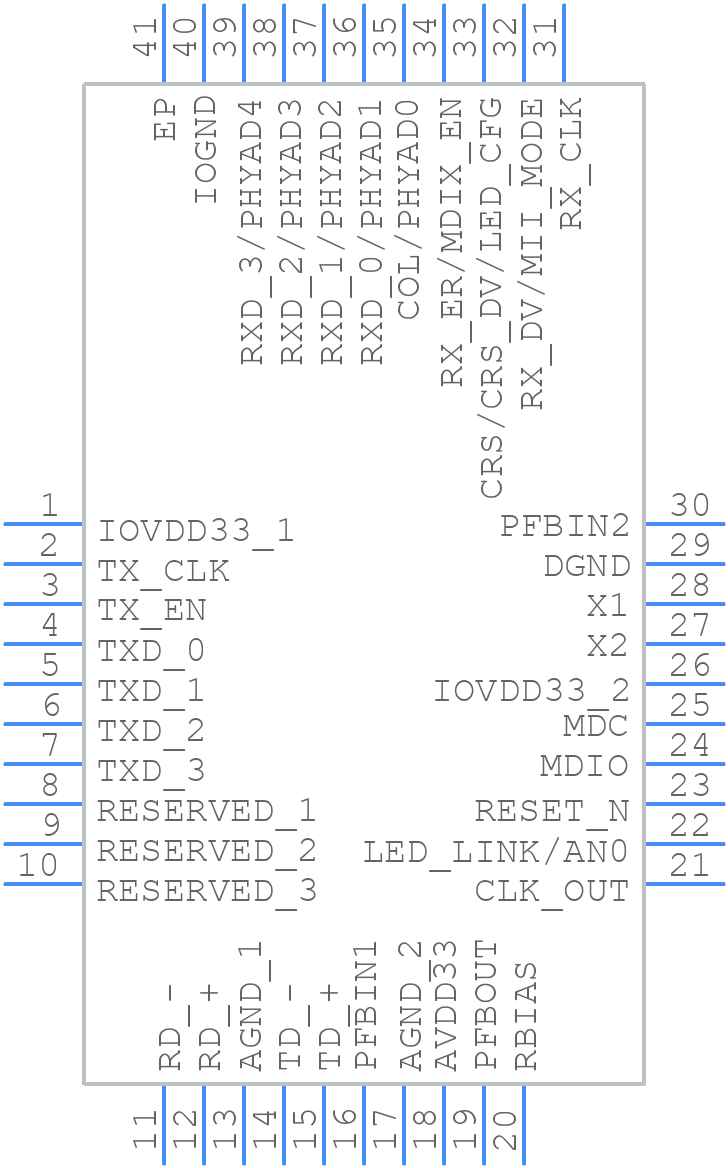

DP83848MSQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83848MSQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTA (S-PQFP-N40)_1
click to zoom
3D Models
DP83848MSQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTA (S-PQFP-N40)_1
click to zoom

DP83848MSQ/NOPB Details

  • Manufacturer Part Number:

    DP83848MSQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DP83848MSQ/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'Ethernet PHY Layout Guidelines' application note (SLAA503) for optimal performance.
  • The DP83848MSQ/NOPB can be configured for specific network speeds using the Speed Control pins (SPD0-SPD2) or through the Management Data Input/Output (MDIO) interface using the PHY register settings.
  • The power consumption of the DP83848MSQ/NOPB varies depending on the operating mode and speed. The typical power consumption is around 350 mW in 1000BASE-T mode and 200 mW in 10/100BASE-TX mode.
  • Texas Instruments provides a troubleshooting guide in the datasheet, which includes steps to identify and resolve common issues such as link faults, packet loss, and incorrect speed negotiation.
  • Yes, the DP83848MSQ/NOPB is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and automotive applications.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

DP83848MSQ/NOPB Overview

Use the download button to access the DP83848MSQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
