DP83848QSQX/NOPB - Texas Instruments

Description: Extended temperature, single port 10/100 Mb/s PHYTER™ Ethernet physical layer transceiver

Download DP83848QSQX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

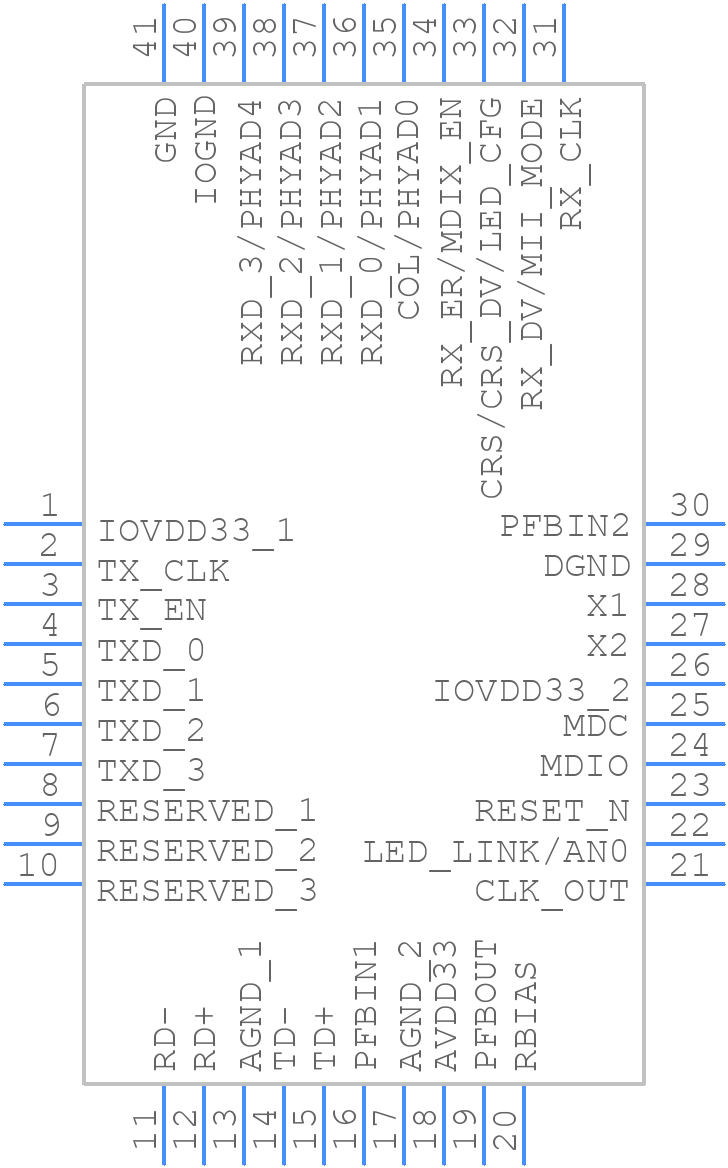

DP83848QSQX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83848QSQX/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTA0040A
click to zoom
3D Models
DP83848QSQX/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTA0040A
click to zoom

DP83848QSQX/NOPB Details

  • Manufacturer Part Number:

    DP83848QSQX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DP83848QSQX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'Ethernet PHY Layout Guidelines' application note (SLWA107) for optimal performance.
  • The DP83848QSQX/NOPB can be configured using the SPI or MII management interfaces. Refer to the 'DP83848QSQX/NOPB Ethernet PHY Transceiver' datasheet and the 'Ethernet PHY Configuration and Register Programming' application note (SLWA108) for configuration details.
  • The DP83848QSQX/NOPB has a typical power consumption of 360 mW in 1000BASE-T mode and 240 mW in 10/100BASE-TX mode. The junction-to-ambient thermal resistance (RθJA) is 45°C/W. Refer to the datasheet for more detailed power and thermal characteristics.
  • Texas Instruments provides a troubleshooting guide in the 'DP83848QSQX/NOPB Ethernet PHY Transceiver' datasheet, as well as an 'Ethernet PHY Troubleshooting Guide' application note (SLWA109). These resources can help identify and resolve common issues.
  • Yes, the DP83848QSQX/NOPB is designed to meet EMI/EMC standards, but proper PCB layout, grounding, and shielding are still essential to ensure compliance. Refer to the 'Ethernet PHY EMI/EMC Considerations' application note (SLWA110) for more information.
