DP83848VYB/NOPB - Texas Instruments

Description: Extended temperature, single port 10/100 Mb/s PHYTER™ Ethernet physical layer transceiver

Download DP83848VYB/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

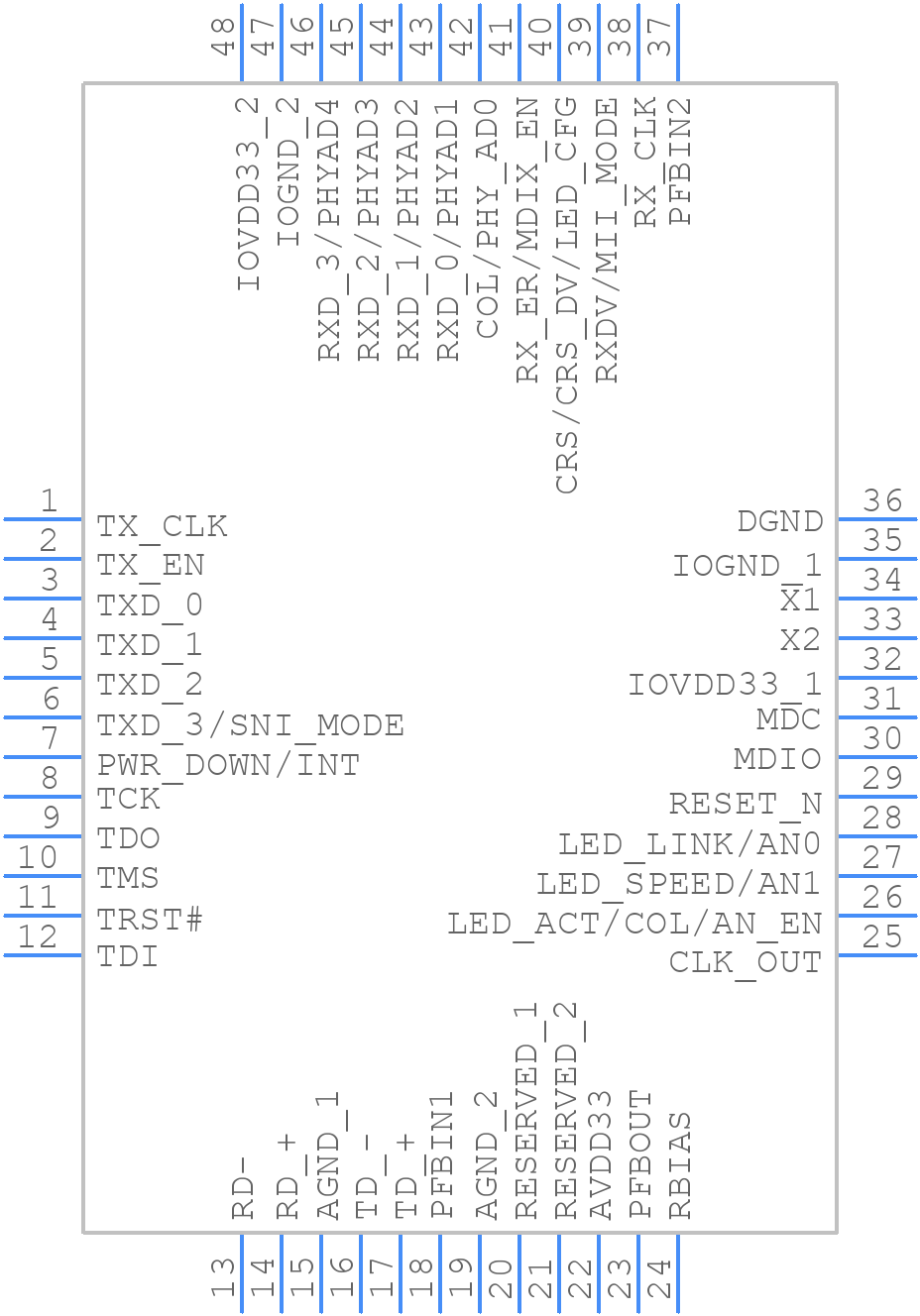

DP83848VYB/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83848VYB/NOPB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PTB (S-HLQFP-G48
click to zoom
3D Models
DP83848VYB/NOPB - Texas Instruments - 3D model - Quad Flat Packages - PTB (S-HLQFP-G48
click to zoom

DP83848VYB/NOPB Details

  • Manufacturer Part Number:

    DP83848VYB/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83848VYB/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'DP83848 PCB Layout Guidelines' (SLUA623) for optimal performance.
  • The DP83848VYB/NOPB can be configured using the SPI interface. Refer to the datasheet and the application note 'DP83848 Configuration and Register Programming' (SLUA622) for details on configuring the device for specific Ethernet applications.
  • The DP83848VYB/NOPB has a maximum junction temperature of 150°C. Ensure proper thermal design and heat dissipation to prevent overheating. Refer to the datasheet for thermal characteristics and guidelines.
  • Use the debug and diagnostic features of the DP83848VYB/NOPB, such as the built-in self-test (BIST) and the status registers. Also, refer to the application note 'DP83848 Troubleshooting Guide' (SLUA624) for common issues and solutions.
  • Follow proper PCB design and layout guidelines to minimize EMI and ensure EMC compliance. Refer to the application note 'DP83848 EMI and EMC Considerations' (SLUA625) for specific guidelines and recommendations.
