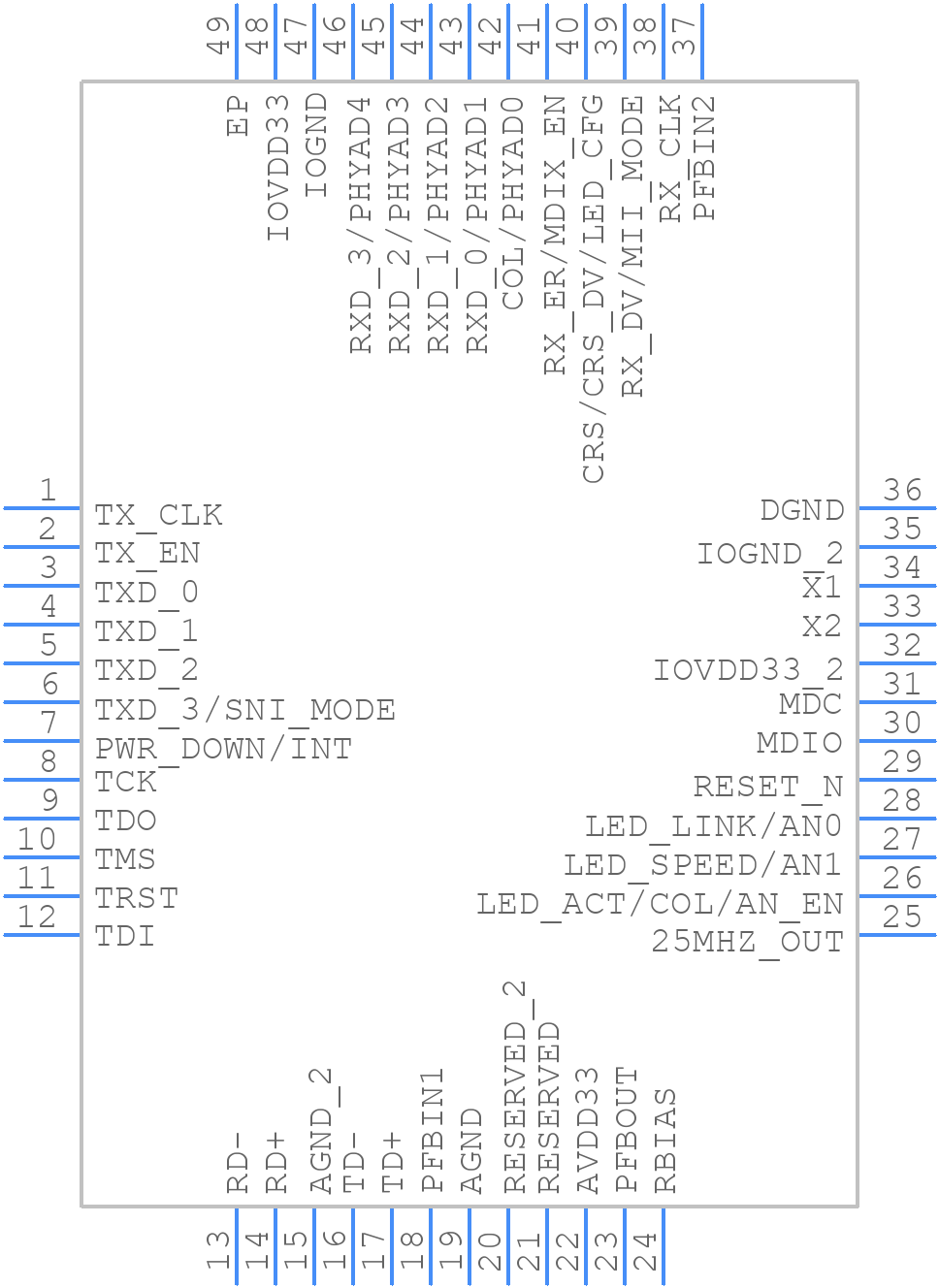

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DP83848YB
- Part Number DP83848YB
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP50P900X900X160-49N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
DP83848YB Details
-
Manufacturer Part Number:
DP83848YB
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFP
-
Package Description:
7 X 7 MM, LEAD FREE, LQFP-48
-
Pin Count:
48
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Data Rate:
100000 Mbps
DP83848YB Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the DP83848YB evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
-
The DP83848YB can be configured using the TI's PHY Utility software, which provides a graphical user interface to configure and monitor the device. The software is available for download on the TI website.
-
The DP83848YB supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application and environmental conditions.
-
Texas Instruments provides a troubleshooting guide for the DP83848YB, which includes steps to identify and resolve common issues such as link faults, packet loss, and PHY configuration errors.
-
Yes, the DP83848YB is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and automotive applications.
Trust Checks
System Verified
DP83848YB Overview
Use the download button to access the DP83848YB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838,
or try a keyword search, such as Network Interfaces
