DP83849CVSX/NOPB - Texas Instruments

Description: Ethernet ICs Commercial temperature, dual-port 10/100-Mbps Ethernet PHY transceiver 80-TQFP 0 to 70

Download DP83849CVSX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DP83849CVSX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

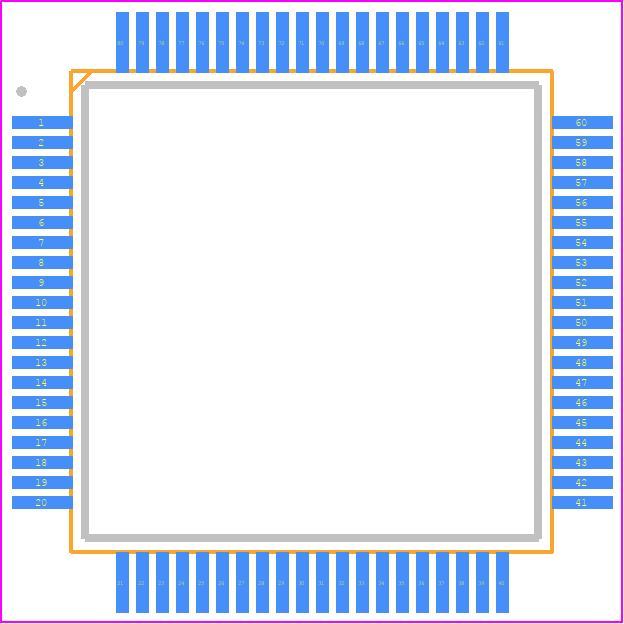

DP83849CVSX/NOPB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - Thin Quad Flat Package (TQFP)80
click to zoom
3D Models
DP83849CVSX/NOPB - Texas Instruments - 3D model - Quad Flat Packages - Thin Quad Flat Package (TQFP)80
click to zoom

DP83849CVSX/NOPB Details

  • Manufacturer Part Number:

    DP83849CVSX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G80

  • JESD-609 Code:

    e4

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

DP83849CVSX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'High-Speed PCB Layout Guidelines' application note (SLVA466) for optimal performance.
  • The DP83849CVSX/NOPB is a highly configurable device. Refer to the 'DP83849CVSX/NOPB Configuration and Register Programming Guide' (SLAU575) for detailed information on configuring the device for specific network applications.
  • The DP83849CVSX/NOPB has a maximum junction temperature of 150°C. Ensure proper thermal design and heat dissipation to prevent overheating. Refer to the 'Thermal Design Considerations' section in the datasheet for more information.
  • Use the 'DP83849CVSX/NOPB Troubleshooting Guide' (SLAU576) to identify and resolve common issues. Additionally, Texas Instruments provides a 'PHYTER' tool for debugging and testing the device.
  • The DP83849CVSX/NOPB is designed to meet EMI and RFI requirements. Follow the 'EMI and RFI Design Considerations' section in the datasheet and the 'High-Speed PCB Layout Guidelines' application note (SLVA466) to ensure compliance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83849CVSX/NOPB Overview

Use the download button to access the DP83849CVSX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
